• Day/night rearview mirror
• Power vertical rear window with defogger and privacy glass
• Power windows with one-touch auto up/down and jam protection
• Front and rear LED maplights

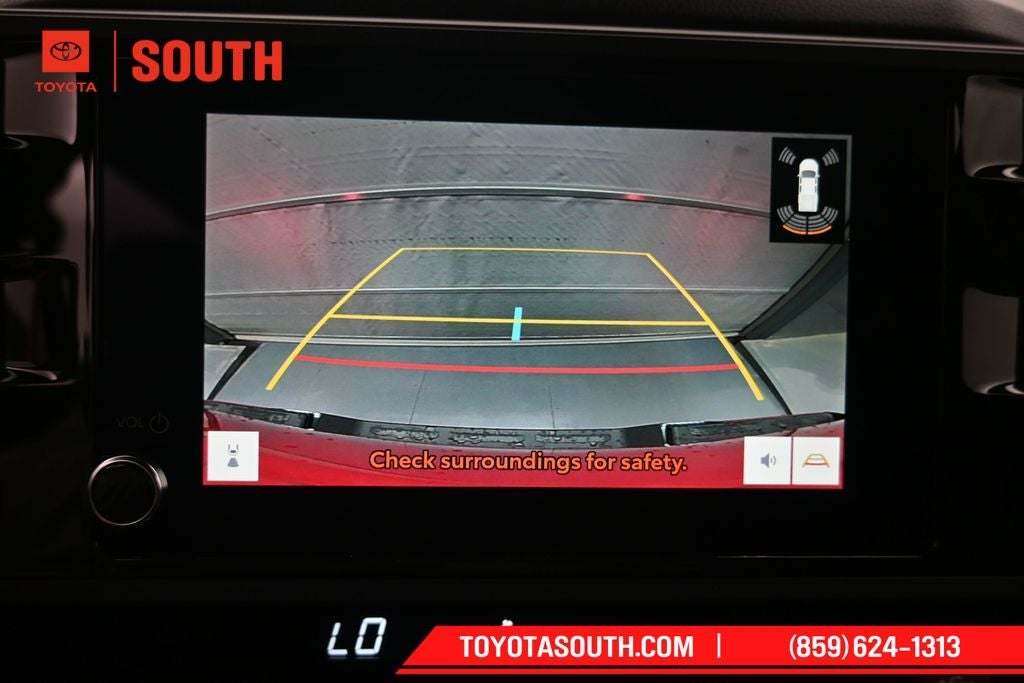

• Backup camera ¹⁵ with projected path
• Drive Mode Select (DMS) switch and dial

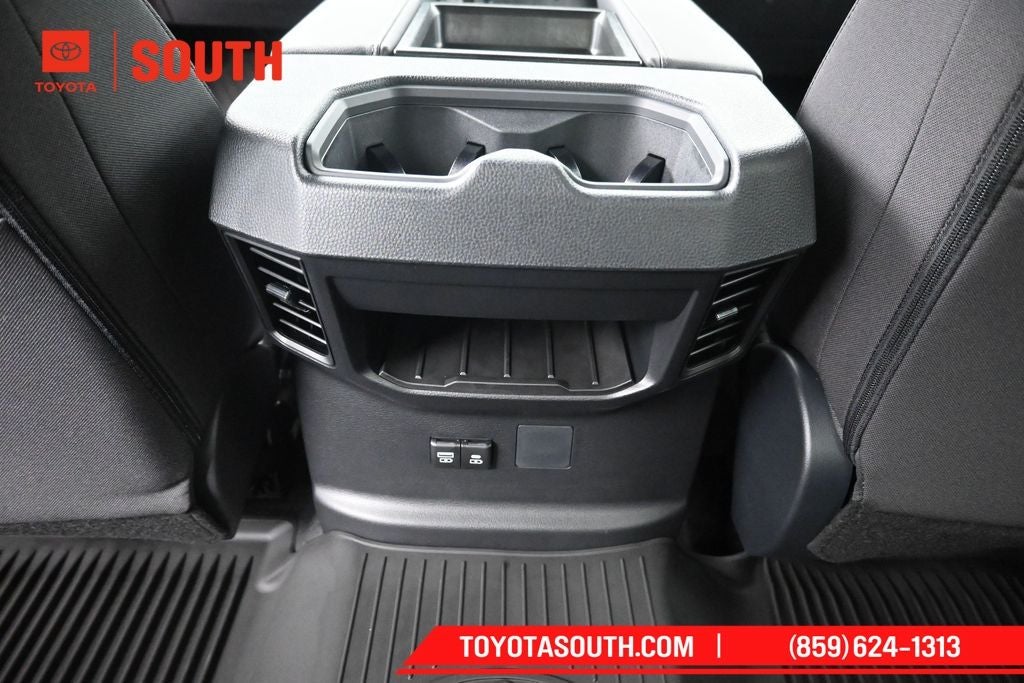

• Rear-seat air vents

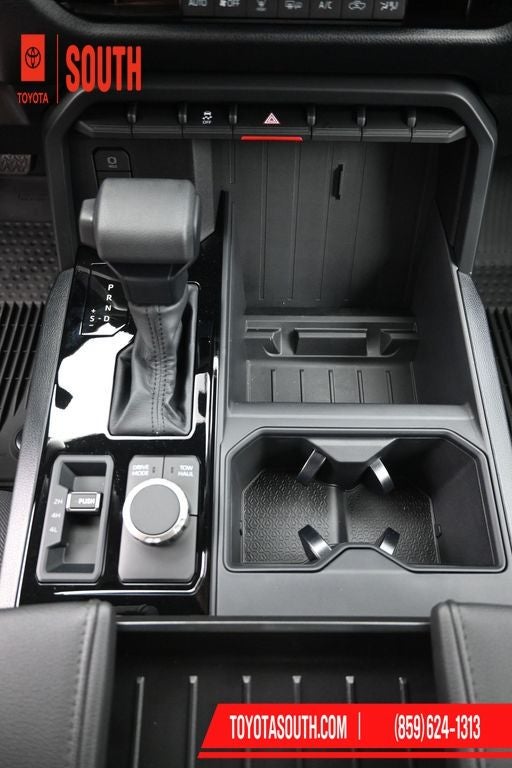

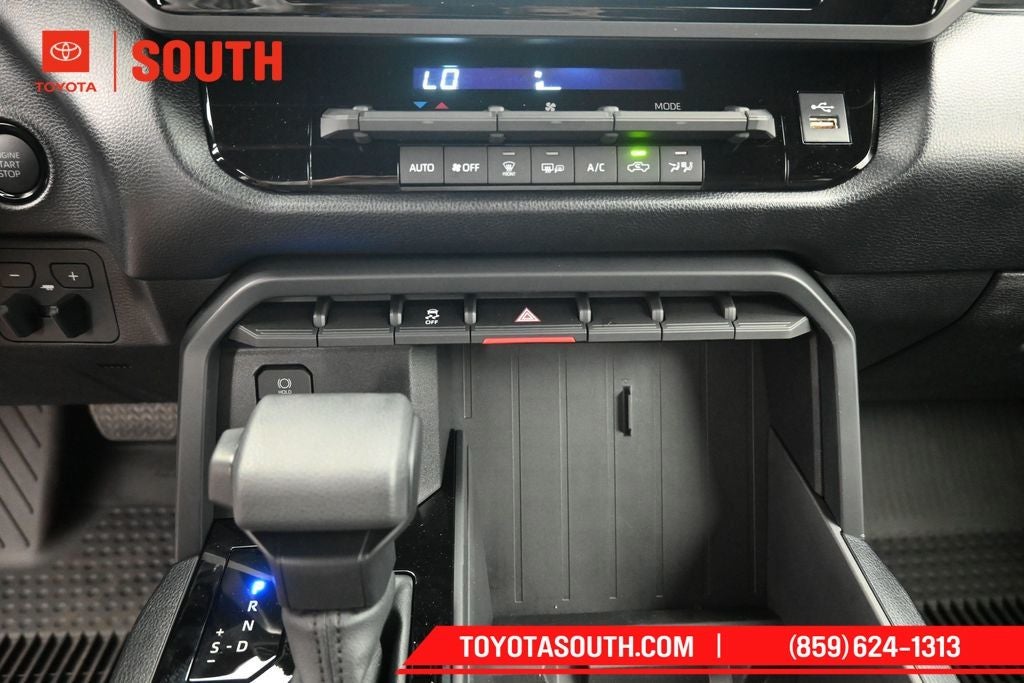

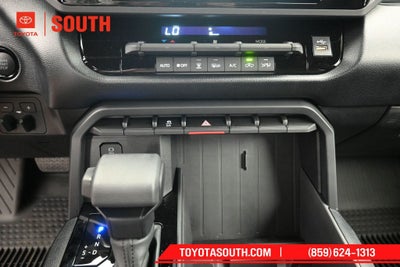

• Fixed center console with gated shift lever, driving controls, four cup holders, and center storage bin
• Front 12V ² auxiliary power outlet
• Overhead console with rear window control, sunglasses storage and Safety Connect® ⁵⁷
• Front and rear assist grips

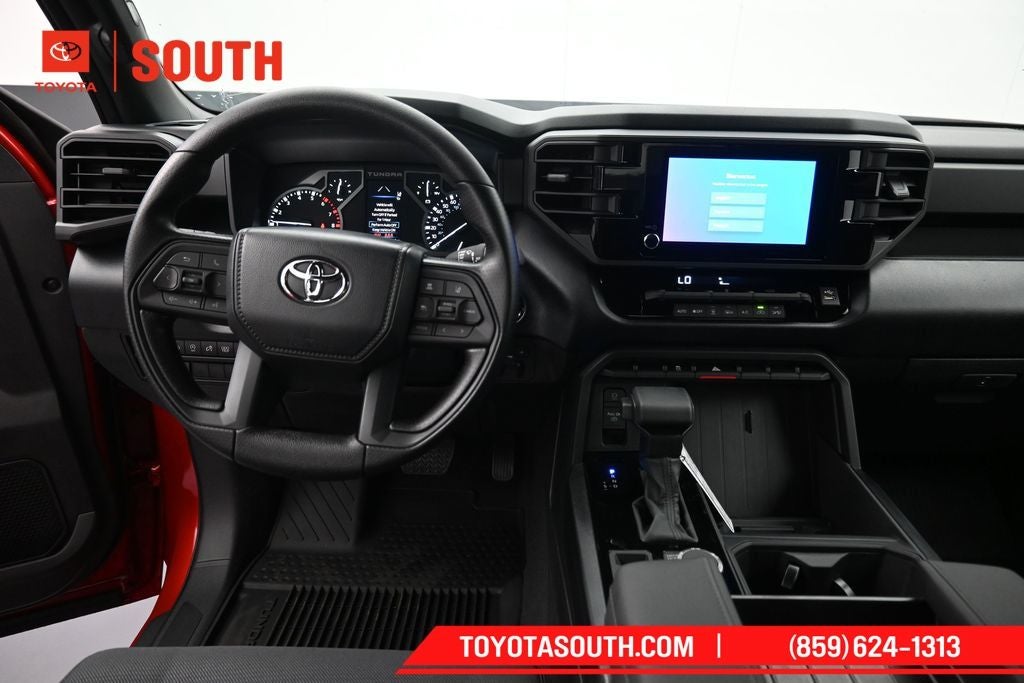

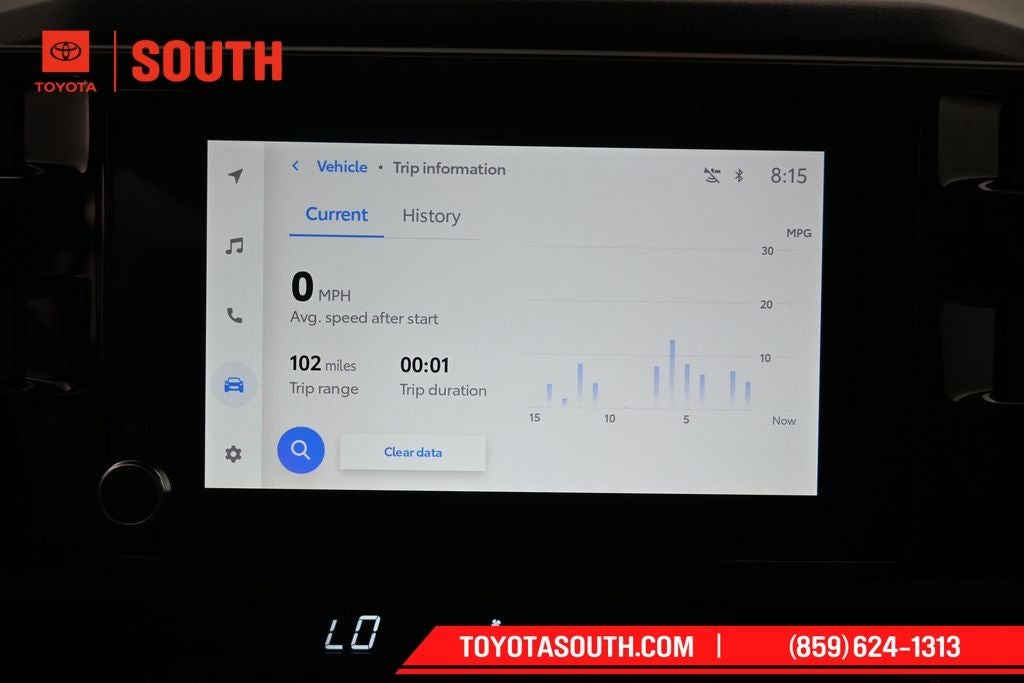

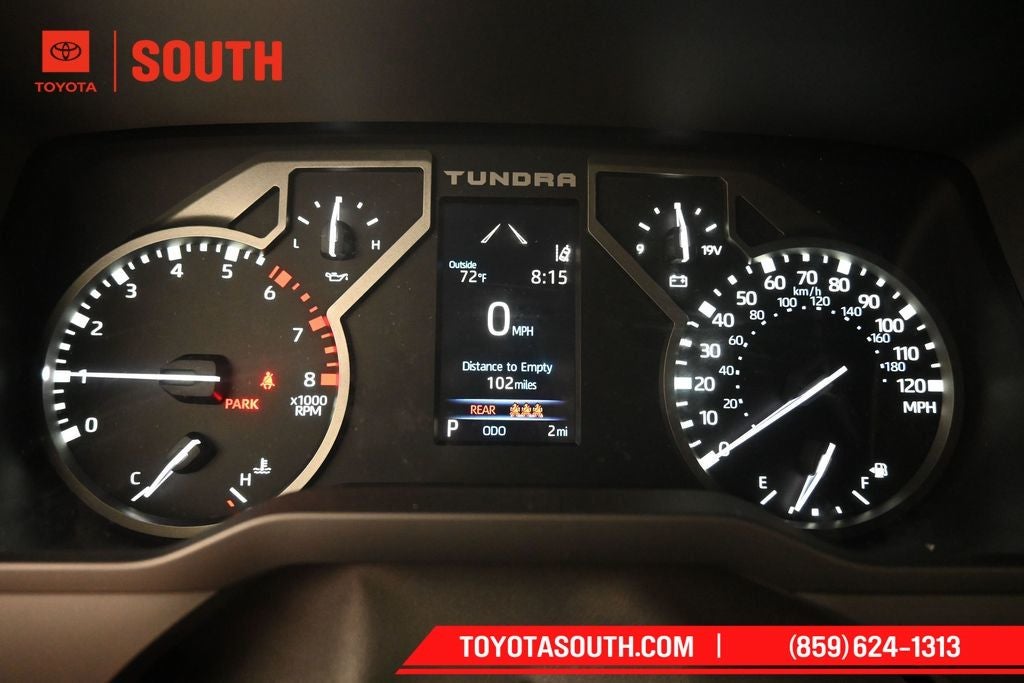

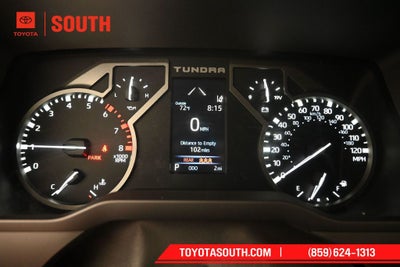

• Combination meter with analog gauges and 4.2-in. color digital gauge cluster with fuel economy, Driver Assist, vehicle/trip information, and warning messages

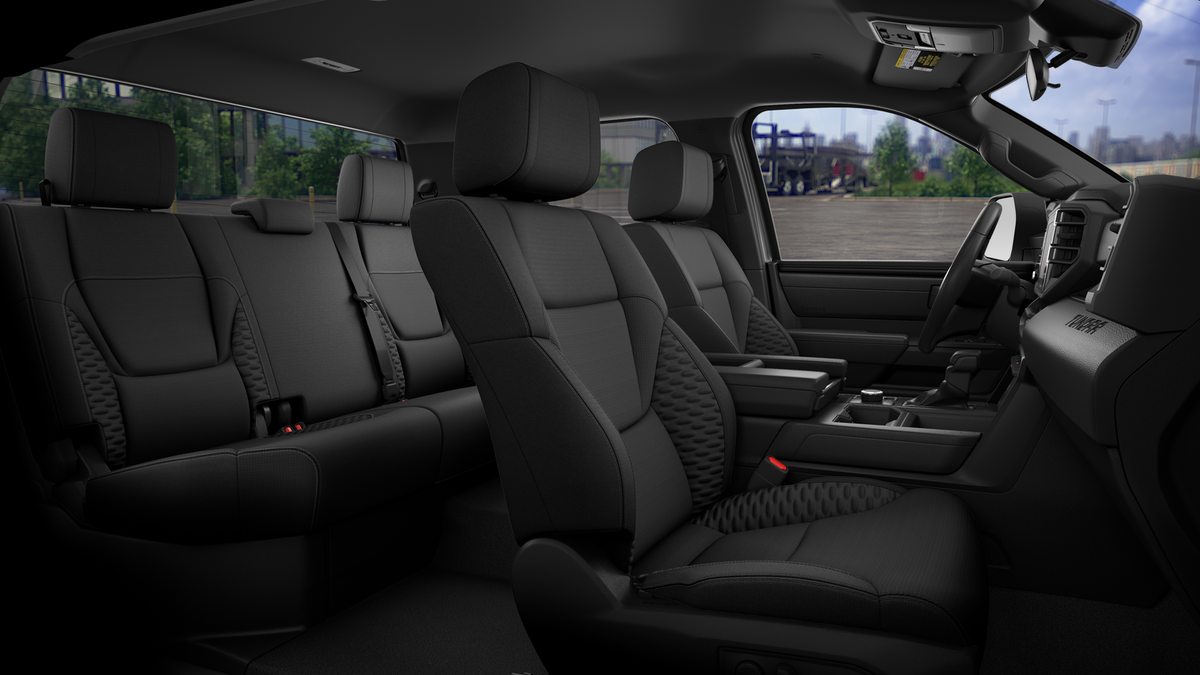

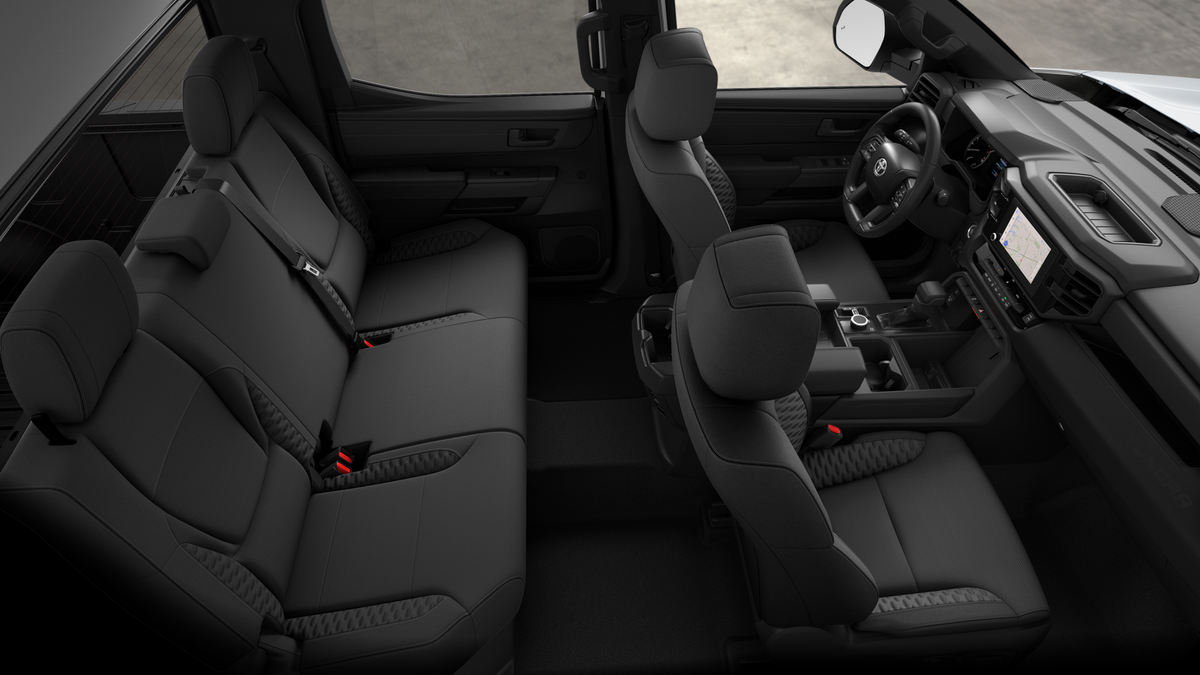

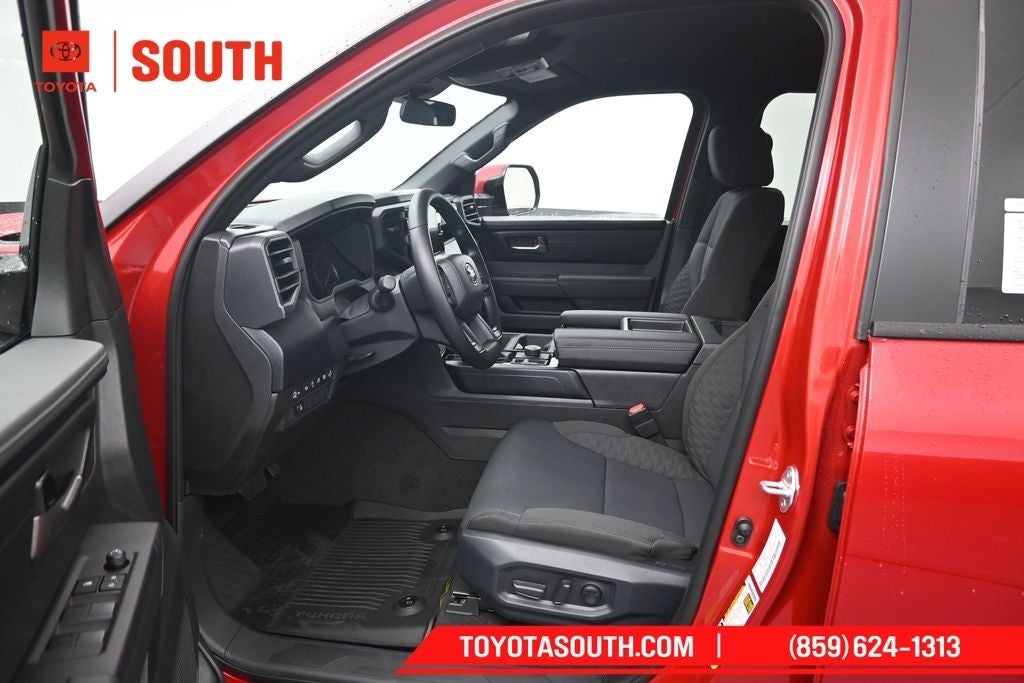

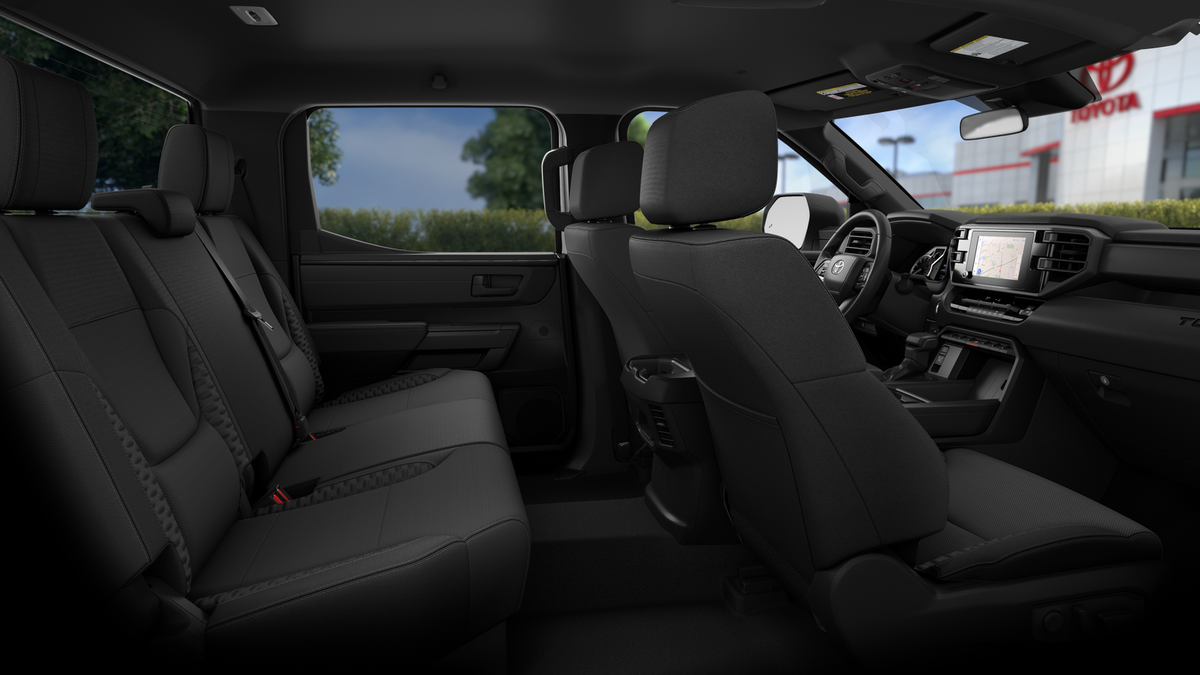

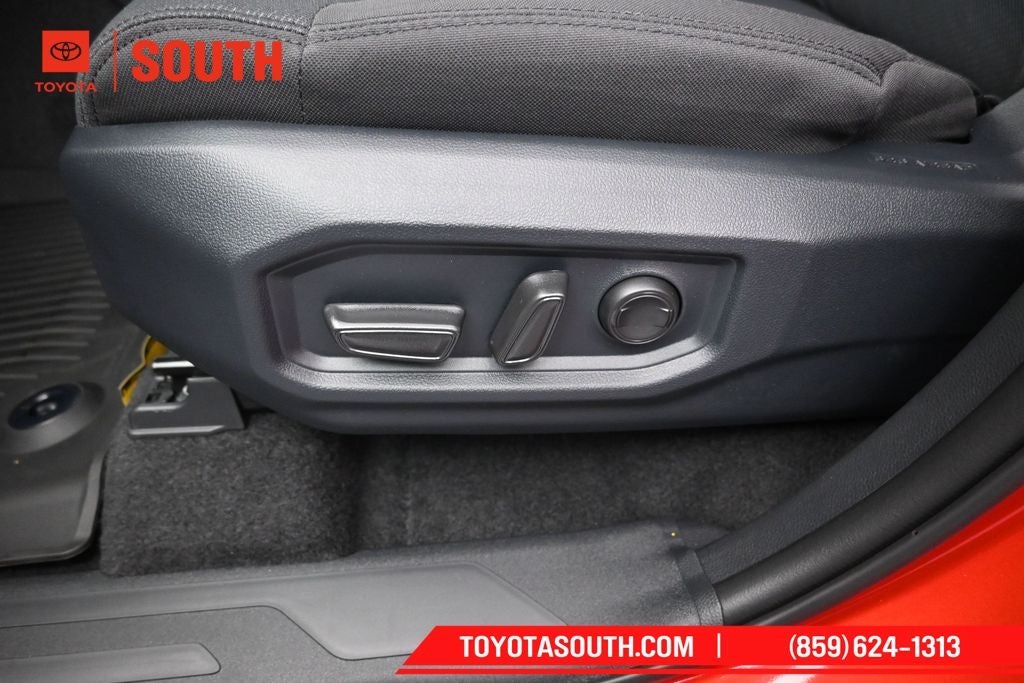

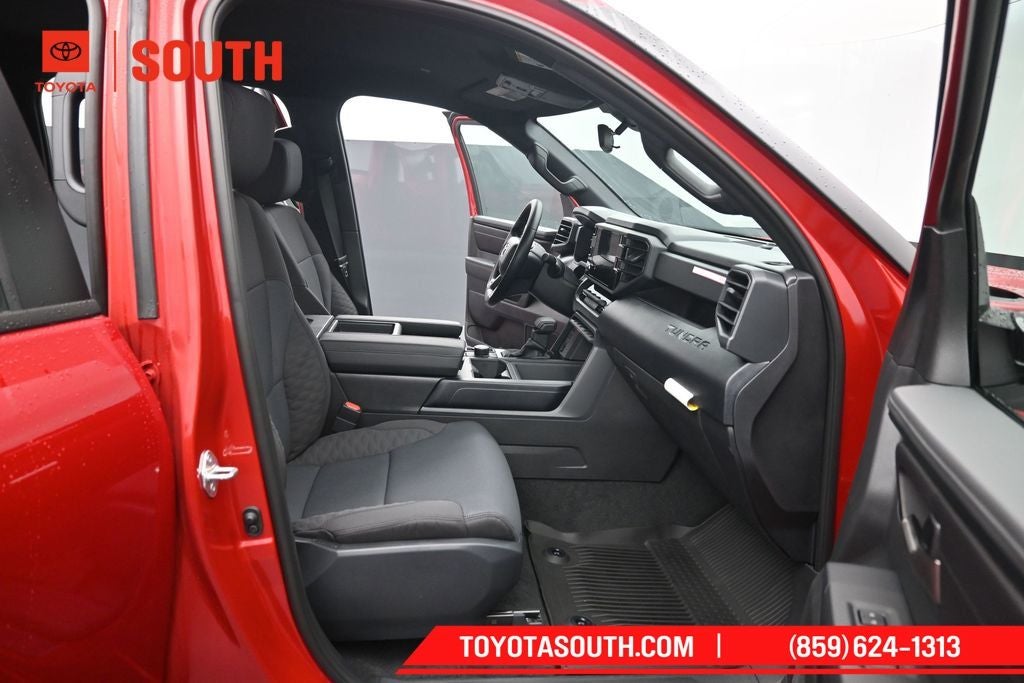

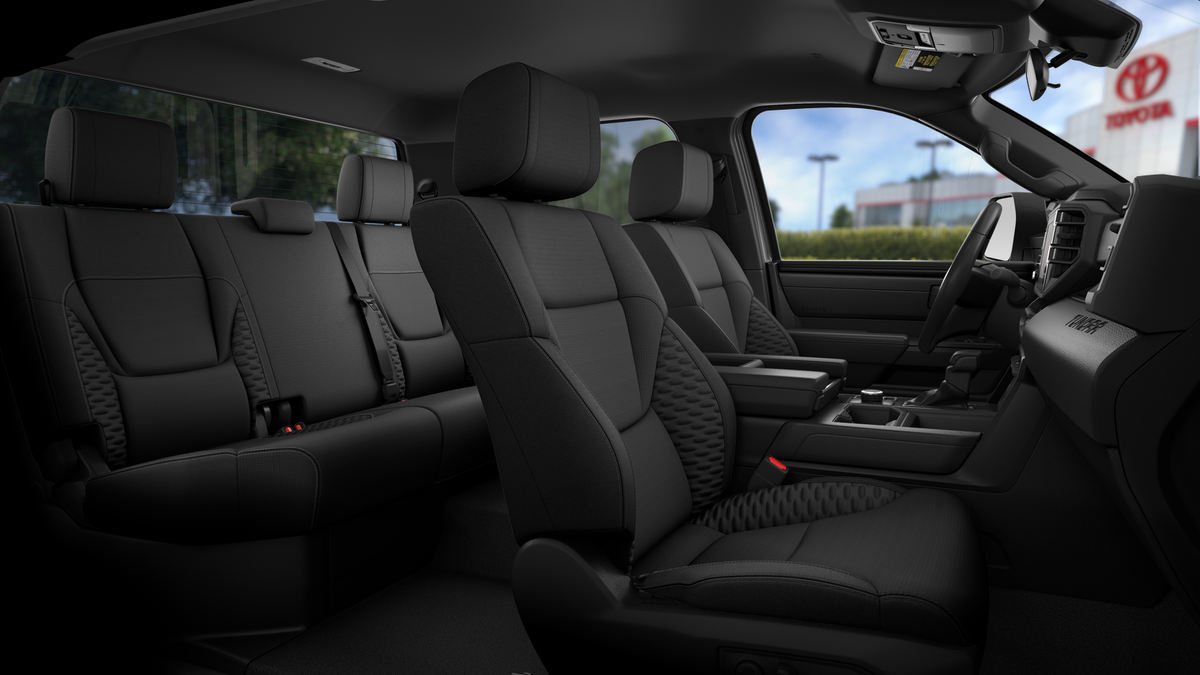

• Fabric-trimmed seats; 8-way power-adjustable driver's seat with power-adjustable lumbar support; 4-way manual adjustable passenger seats

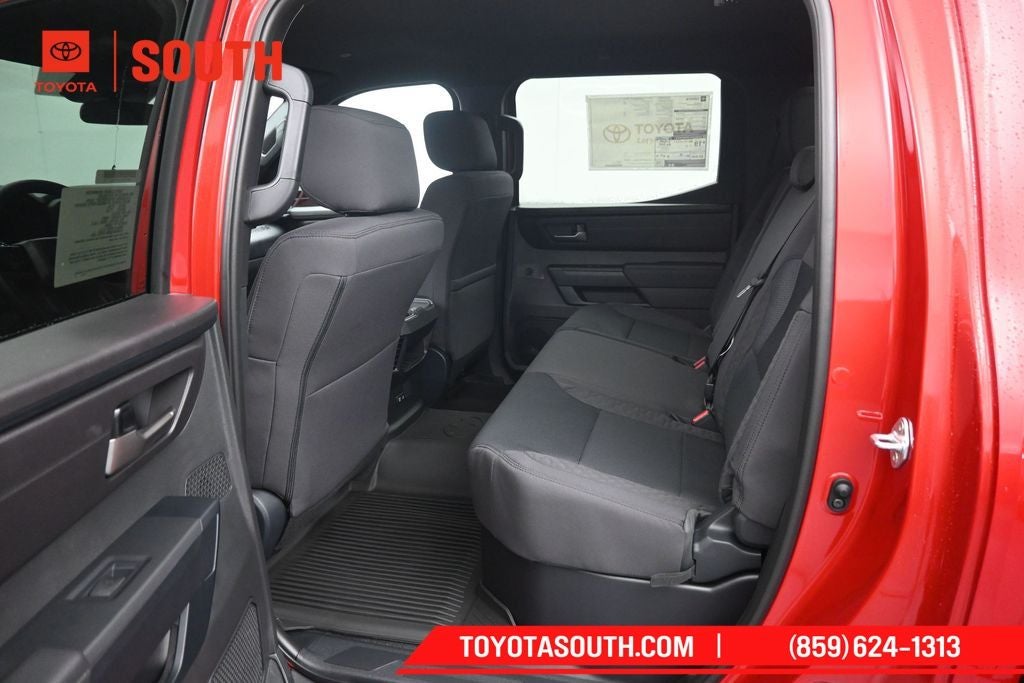

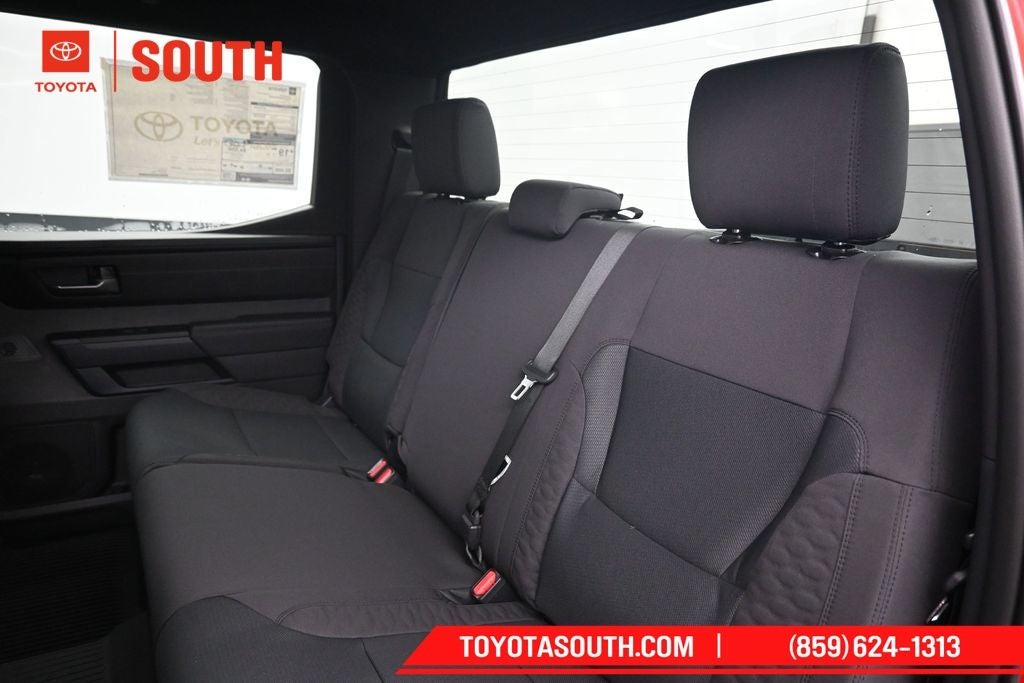

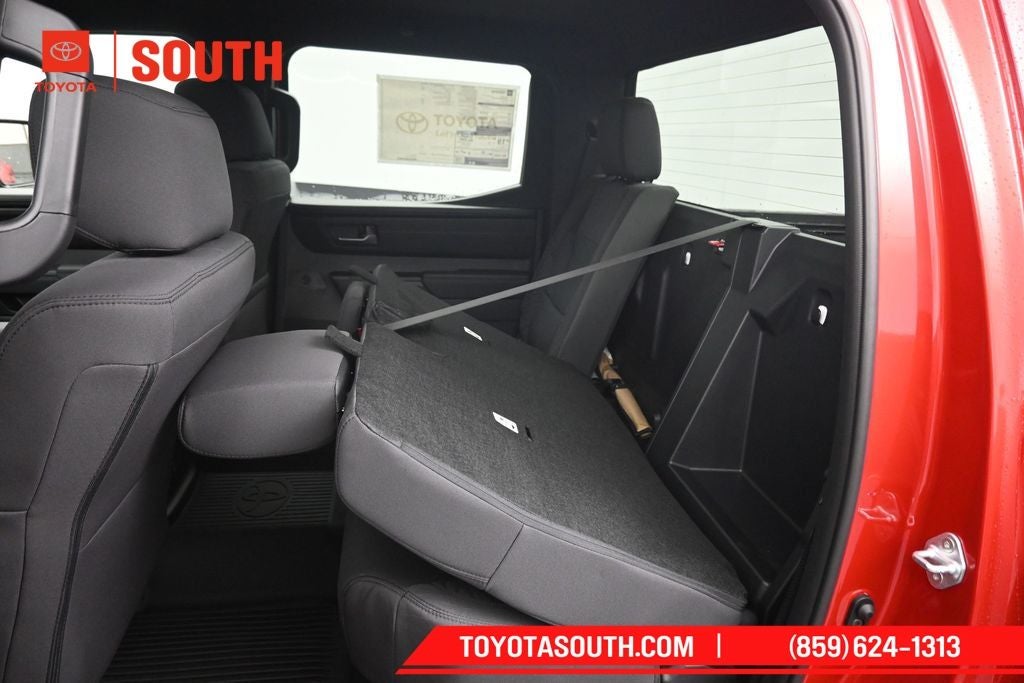

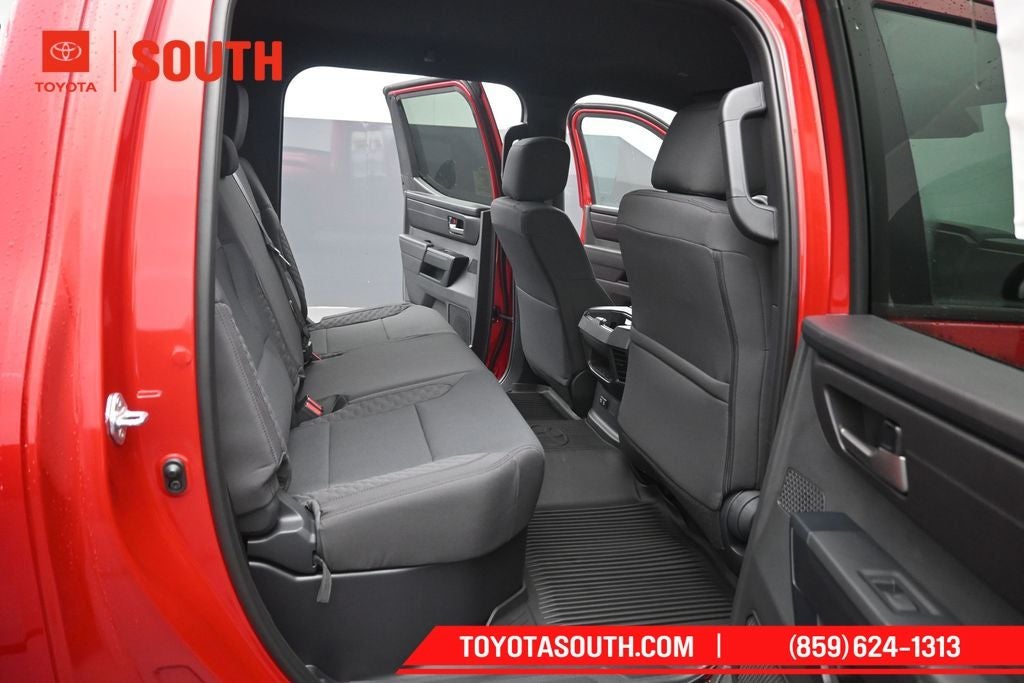

• 60/40 split, folding rear seat

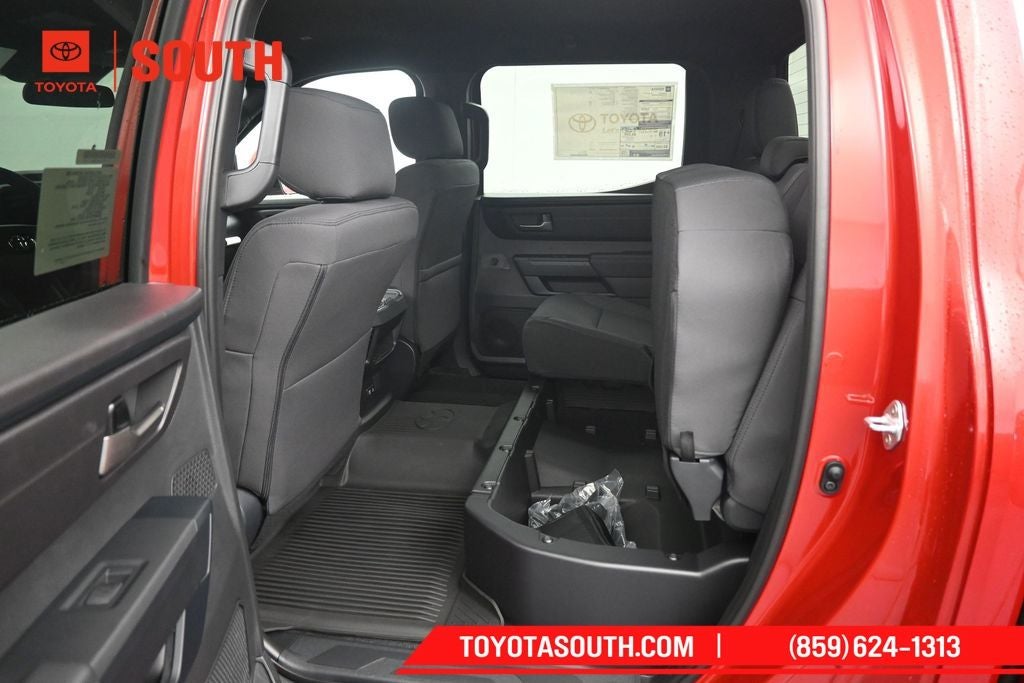

• Rear under-seat storage compartment with removable and adjustable partitions
• Single-zone automatic climate control with air filtration with S-Flow

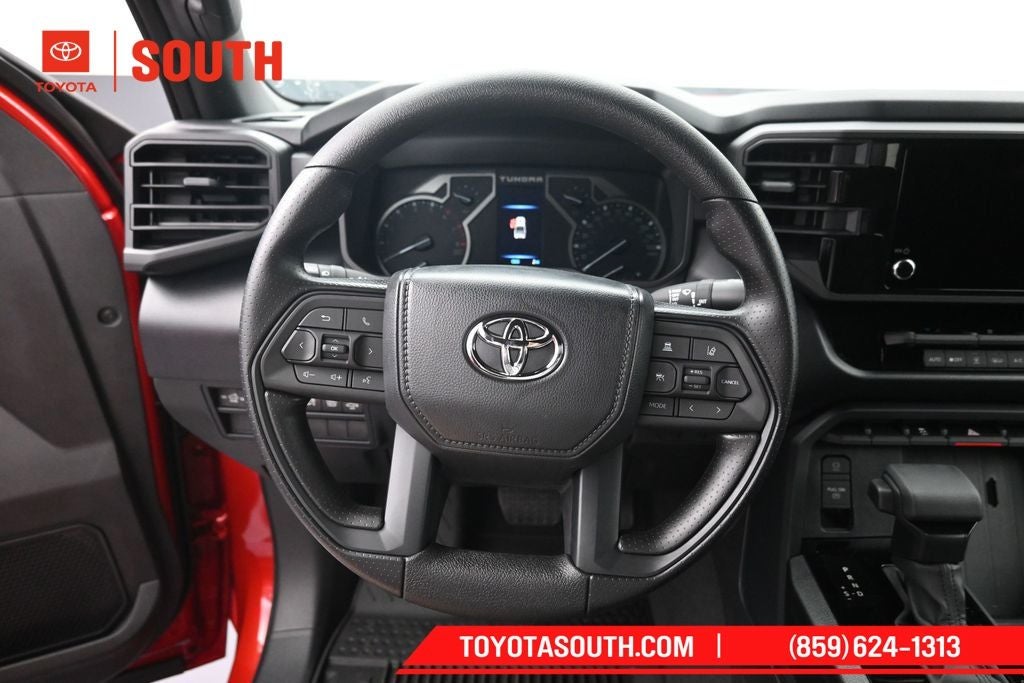

• Polyurethane manual tilt/telescopic steering wheel with phone, audio, display/infotainment, and Driver Assist controls
• 9-speaker audio system

• Ignition System: Conventional 12V starter ²
• Fuel System: D-4ST direct-injection and port-injection fuel system
• Intake: Twin turbochargers with electric wastegate valve actuators and water-cooled intercooler
• Exhaust System: Stainless steel exhaust system
• Towing: Class-IV towing hitch receiver and wiring harness with 7-pin/4-pin connector ⁶⁷

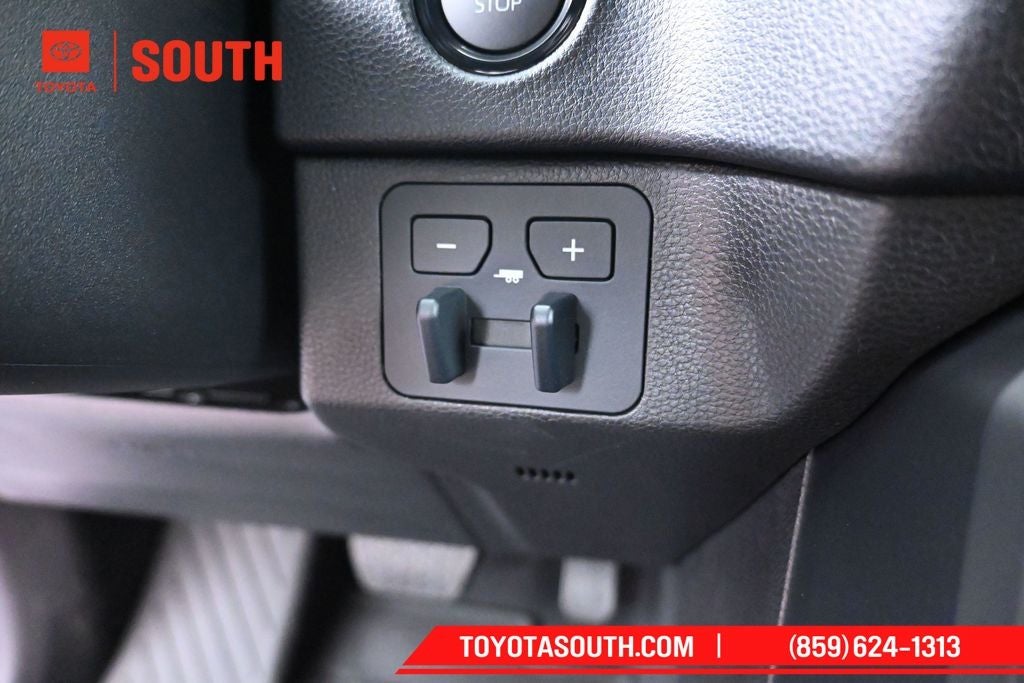

• Towing: Integrated Trailer Brake Controller (ITBC) ³⁷with Multi-Information Display (MID) screen and trailer brake type, gain and manual trailer brake output controls ⁶⁷
• Towing: Trailer-Sway Control (TSC) ⁷¹
• Drivetrain: 4WDemand part-time 4-Wheel Drive with electronically controlled 2-speed transfer case (high/low ranges) and Automatic Limited-Slip Differential (Auto LSD) ⁸
• Drive Modes: Eco, Normal and Sport driving modes
• Drive Modes: TOW/HAUL driving modes ⁶⁷
• Body/Frame: Fully boxed high-strength steel ladder frame
• Body/Frame: Ultra-high-strength steel cabin construction with aluminum hood and front door panels
• Body/Frame: Active aero front spoiler
• Body/Frame: Active grille shutters
• Suspension: Independent double-wishbone front suspension; coil spring multi-link rear suspension
• Steering: Electric Power Steering (EPS); power-assisted rack-and-pinion
• Brakes: Power-assisted, ventilated 13.9-in. front disc brakes with opposed dual-piston brake calipers; ventilated 13.6-in. rear disc brakes with single-piston calipers
• Brakes: Electronically Controlled Braking (ECB) system
• Brakes: Electric Parking Brake (EPB) ²²

• Toyota Safety Sense™ 2.5 (TSS 2.5) ⁷² Pre-Collision System with Pedestrian Detection (PCS w/PD), ⁵¹ Full-Speed Range Dynamic Radar Cruise Control (DRCC), ²⁸ Lane Departure Alert with Steering Assist (LDA w/SA), ³⁹ Lane Tracing Assist (LTA), ⁴⁰ Automatic High Beams (AHB), ⁷ Road Sign Assist (RSA) ⁵⁶
• 3-point seatbelts for all seating positions; driver-side Emergency Locking Retractor (ELR) and Automatic/Emergency Locking Retractor (ALR/ELR) on all passenger seatbelts
• Eight total airbags, including driver and passenger side, knee and curtain airbags ³
• LATCH (Lower Anchors and Tethers for CHildren) includes lower anchors on all outboard second-row rear seats
• Child-protector rear door locks and power window lockout control
• Star Safety System™ — includes Vehicle Stability Control (VSC), ⁷⁷ Traction Control (TRAC), Anti-lock Brake System (ABS) with Electronic Brake-force Distribution (EBD), Brake Assist (BA) ¹³ and Smart Stop Technology® (SST) ⁶⁰
• Drive-Start Control (DSC)
• Hill Start Assist Control (HAC) ³⁰
• Tire Pressure Monitor System (TPMS) ⁷⁰
• Driver and front passenger headrests

Door Edge Guards: Stainless Steel

Help prevent door edge dings and chipped paint with this protective finishing touch.
• Thermoplastic-coated stainless steel is precisely matched to the exterior finish

50 State Emissions

50 State Emissions

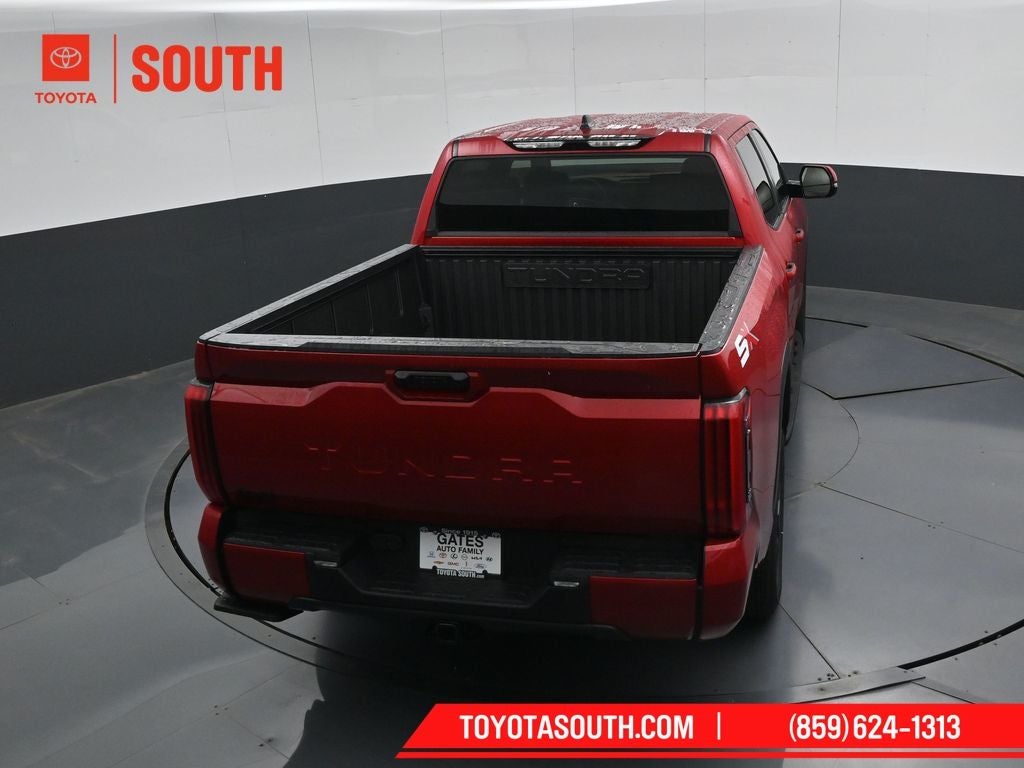

Spray-On Bedliner

Get the spray-on bedliner that’s as tough and durable as your Tundra. Protect your bed from damage with this permanently bonded fixture.
• New Toyota-exclusive softer material to keep items from sliding in the bed
• Toyota quality standards assure uniform thickness and a consistent texture
• Textured surface is designed to prevent cargo from sliding
• No lost cargo space minimal added weight
• Features a Tundra logo
• Proprietary application method helps create a straight and crisp edge
• Fully warranted; repairs completed quickly and easily at a Toyota dealership

SR5 Painted BSM Mirror

SR5 painted blind spot mirrors ¹²

Premium Paint

Premium Paint

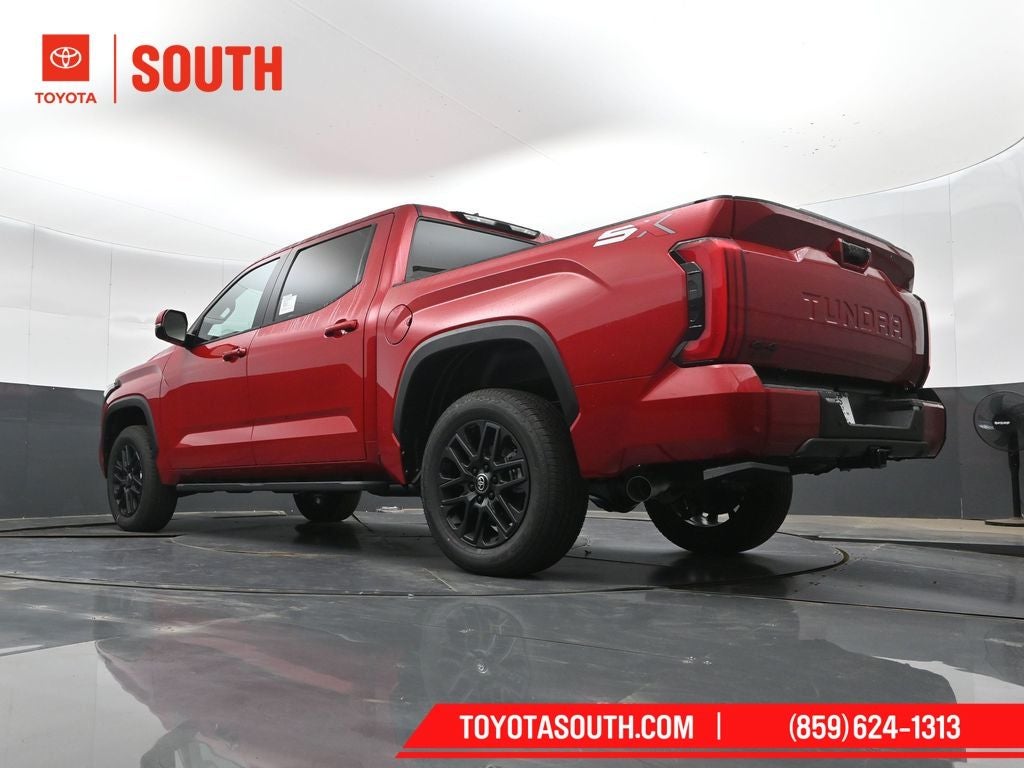

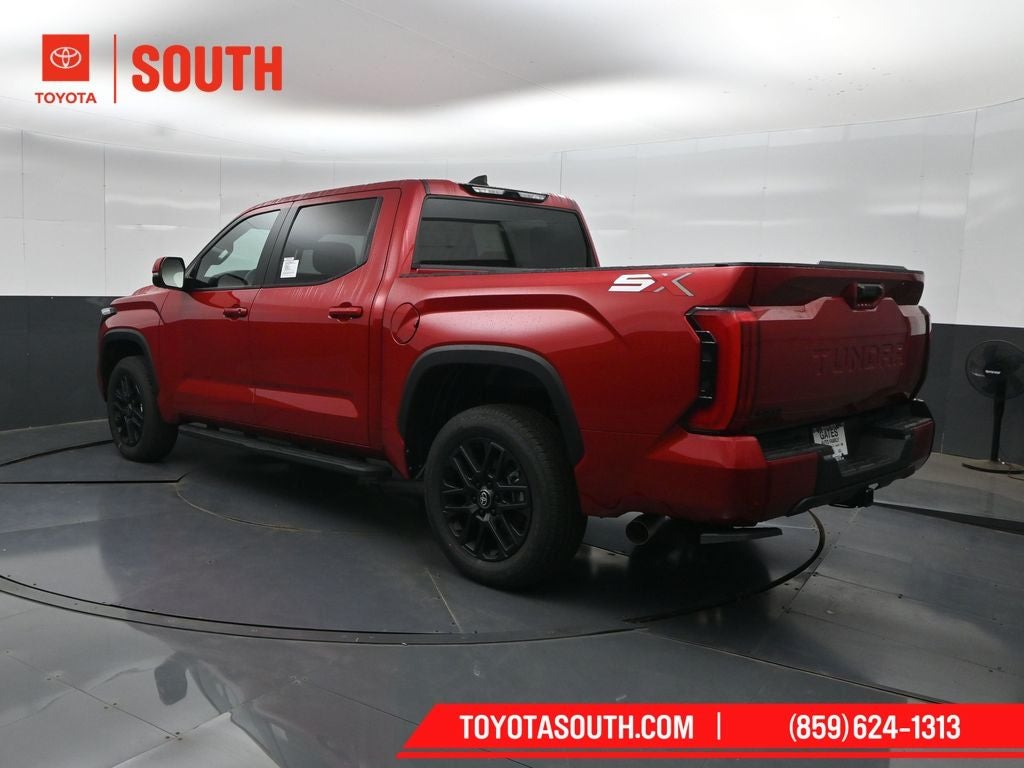

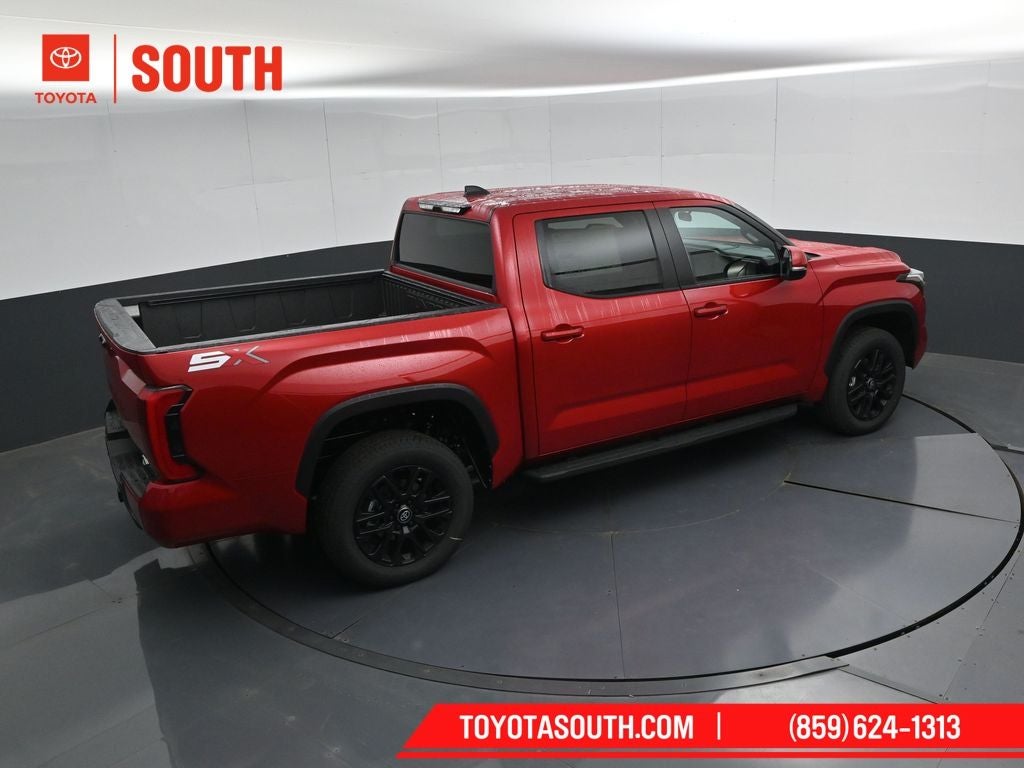

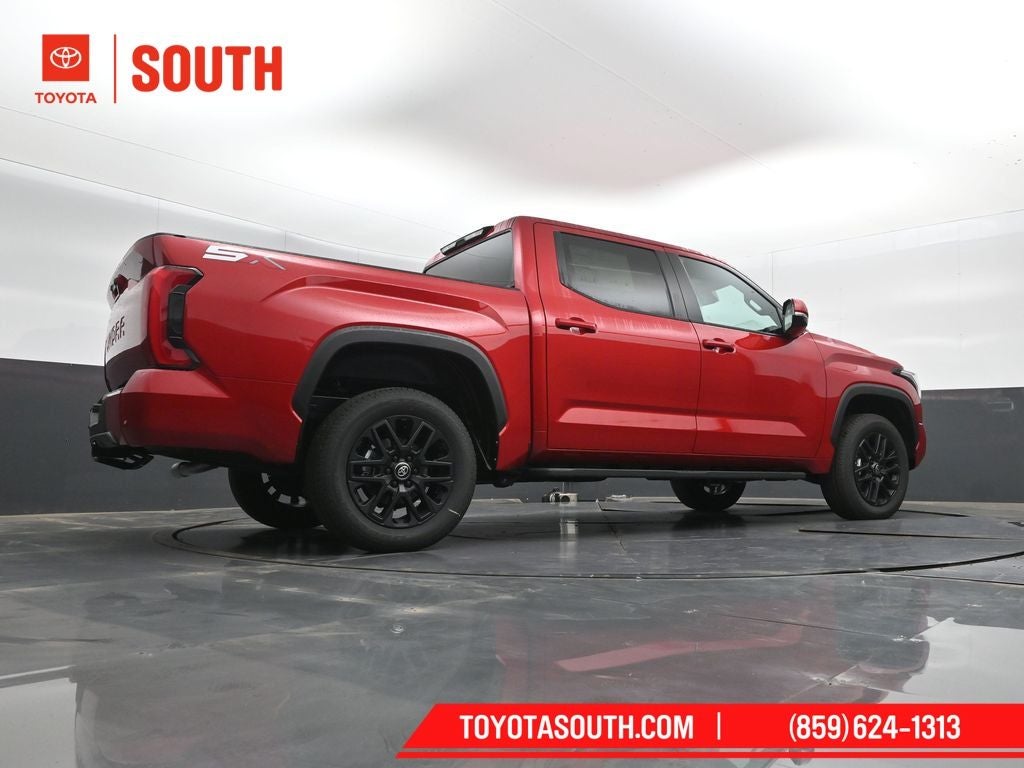

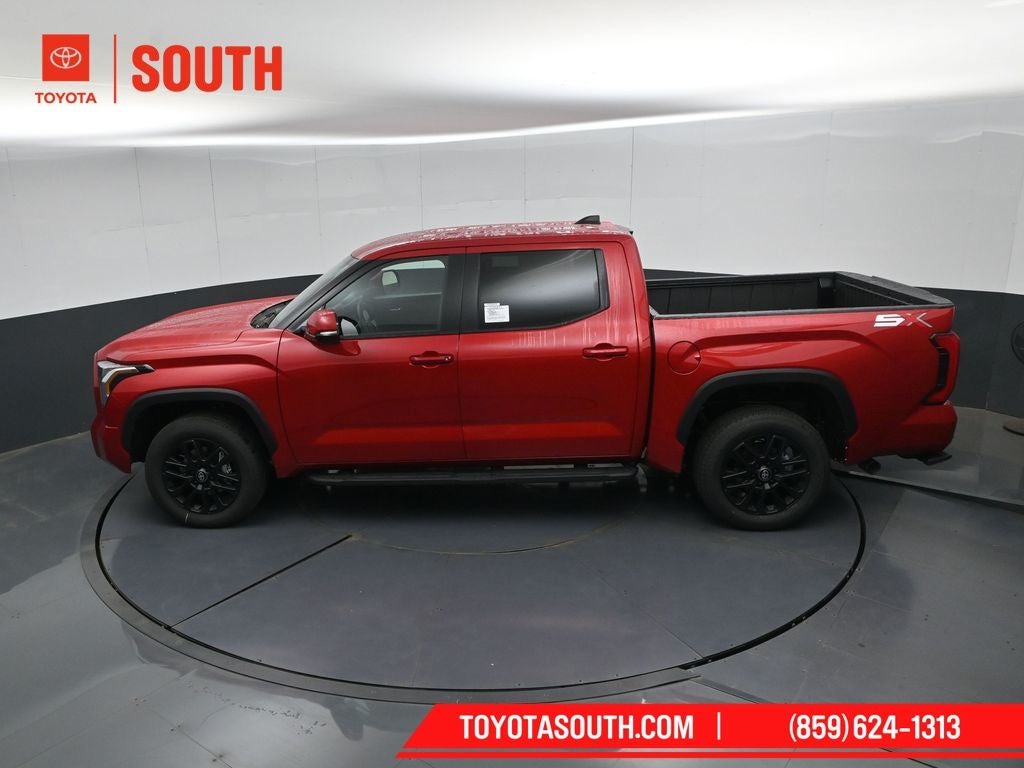

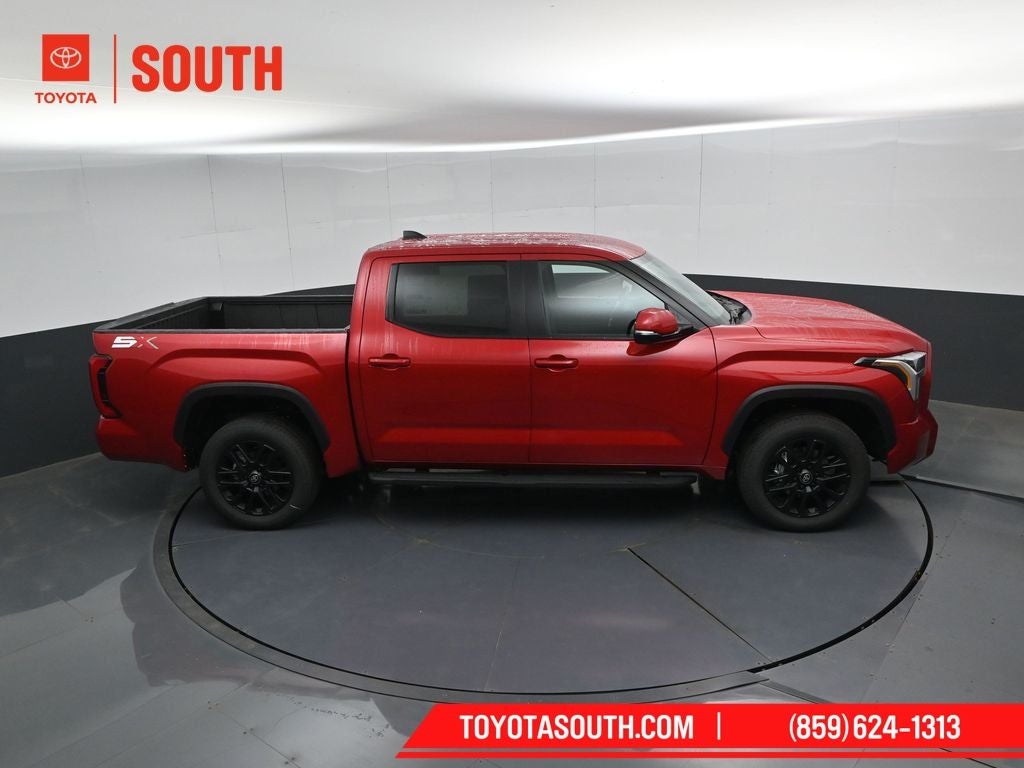

SX Package

SX Package

• Color-keyed door handles and bumpers


• Black overfenders


• Black fabric-trimmed seats

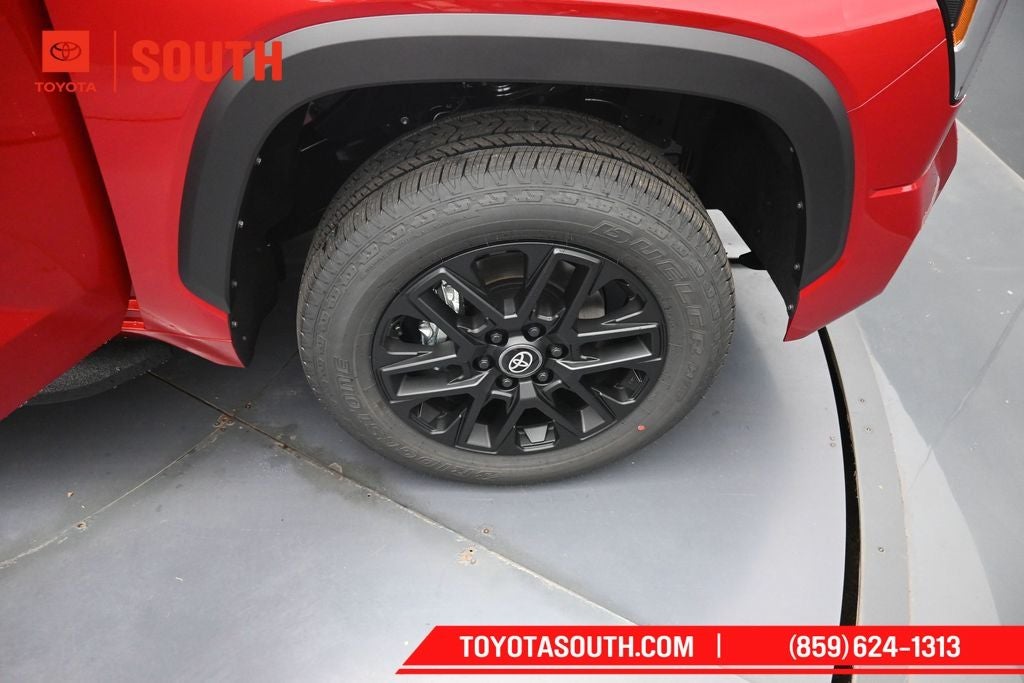

• 20-in. black alloy wheels


• SX bed decal

SR5 Convenience Package

SR5 Convenience Package

• Blind Spot Monitor (BSM) ¹⁴


• Front and Rear Parking Assist with Automatic Braking ⁴⁷

All-Weather Floor Liners

Engineered to precisely fit your Tundra and made from durable weather-resistant material.
• Liners feature channels to better hold moisture

TRD Cast Aluminum Running Boards

Step up and step in. These sturdy running boards give you easier access to the vehicle.
• Durable aluminum construction with slip-resistant coating
• Sleek design enhances the contours of the vehicle

BedStep®

Get a leg up when loading or unloading the cargo in your truck’s bed with a BedStep®. It bolts on with no drilling required and tucks neatly under the rear bumper when not in use.
• Works with tailgate up or down
• Hands-free operation; adjusts easily
• Lightweight high-strength aluminum die-cast construction features a reinforced nylon step pad with ribbed nonskid stepping surface
• 300-lb. load capacity
• Weather-resistant black anodized and Teflon® powder-coat finish for long-term durability
• Leaves hitch receiver free for towing

• 9 Speakers

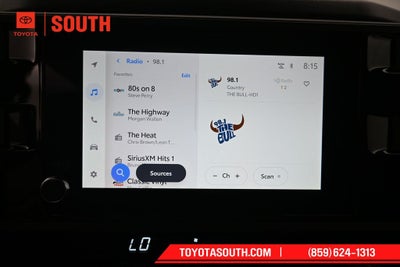

• AM/FM radio: SiriusXM
• Radio data system
• Radio: Audio Plus
• Air Conditioning
• Automatic temperature control
• Rear window defroster
• Power driver seat
• Power steering
• Power windows
• Remote keyless entry
• Steering wheel mounted audio controls
• Speed-sensing steering
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Dual front side impact airbags
• Emergency communication system: Safety Connect (up to 10-year trial subscription)
• Front anti-roll bar
• Front wheel independent suspension
• Knee airbag
• Low tire pressure warning
• Occupant sensing airbag
• Overhead airbag
• Brake assist
• Electronic Stability Control
• Exterior Parking Camera Rear
• Auto High-beam Headlights
• Delay-off headlights
• Front fog lights
• Fully automatic headlights
• Panic alarm
• Safety Connect
• Security system
• Speed control
• Bed Step
• Bumpers: body-color
• Heated door mirrors
• Power door mirrors
• Rear step bumper
• TRD Cast Aluminum Running Board
• All Weather Floor Liners

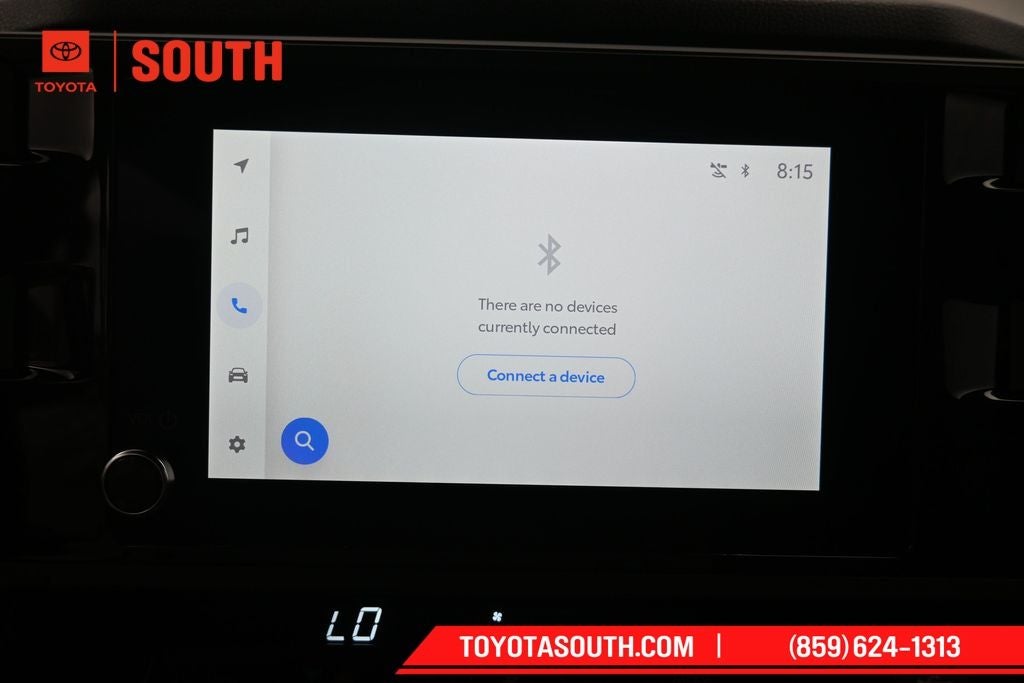

• Apple CarPlay/Android Auto
• Driver door bin
• Driver vanity mirror
• Front reading lights
• Illuminated entry
• Outside temperature display
• Overhead console
• Passenger vanity mirror
• Rear reading lights
• Tachometer
• Telescoping steering wheel
• Tilt steering wheel
• Trip computer
• Voltmeter
• Front Bucket Seats
• Front Center Armrest
• Leather Seat Trim
• Split folding rear seat
• Passenger door bin
• Stainless Steel Door Edge Guards
• Alloy wheels
• Variably intermittent wipers
• 3.31 Axle Ratio

• Mileage
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 22
• Weight Information
• Base Curb Weight (lbs): 5390
• Gross Vehicle Weight Rating Cap (lbs): 7210
• Gross Combined Wt Rating (lbs): 17250
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11160
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1116
• Maximum Trailering Capacity (lbs): 11160
• Suspension
• Suspension Type - Front: Double Wishbone
• Suspension Type - Rear: Multi-Link
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Ratio (:1) - Front: 3.31
• Axle Ratio (:1) - Rear: 3.31
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.9
• Rear Brake Rotor Diam x Thickness (in): 13.6

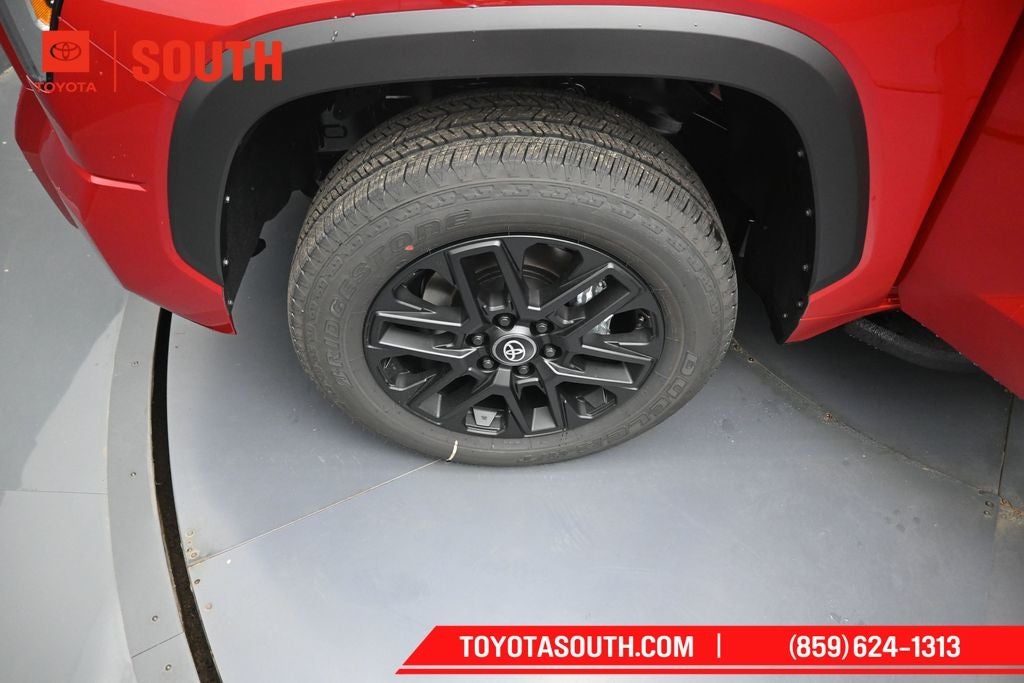

• Tires
• Front Tire Size: P265/70TR18
• Rear Tire Size: P265/70TR18
• Spare Tire Size: Full-Size
• Wheels
• Front Wheel Size (in): 18 X 7.5
• Rear Wheel Size (in): 18 X 7.5
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 48.6
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 32.2
• Exterior Dimensions
• Wheelbase (in): 145.7
• Length, Overall (in): 233.6
• Width, Max w/o mirrors (in): 80.2
• Height, Overall (in): 78
• Ground Clearance, Front (in): 9.3
• Ground Clearance, Rear (in): 9.3
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 65.6
• Cargo Box Width @ Top, Rear (in): 58.7
• Cargo Box Width @ Floor (in): 58.7
• Cargo Box Width @ Wheelhousings (in): 48.7
• Cargo Box (Area) Height (in): 20.9
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41
• Front Leg Room (in): 41.2
• Front Shoulder Room (in): 65
• Front Hip Room (in): 62.6
• Second Head Room (in): 38.5
• Second Leg Room (in): 41.6
• Second Shoulder Room (in): 62.4
• Second Hip Room (in): 60.5
• Summary

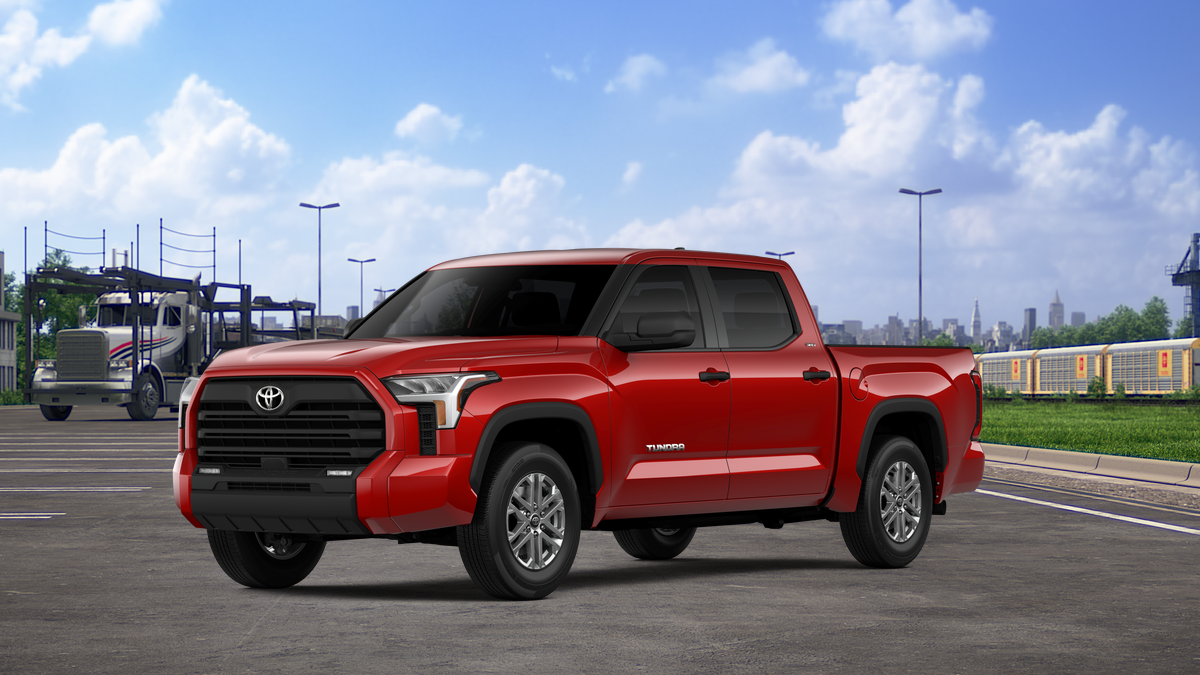

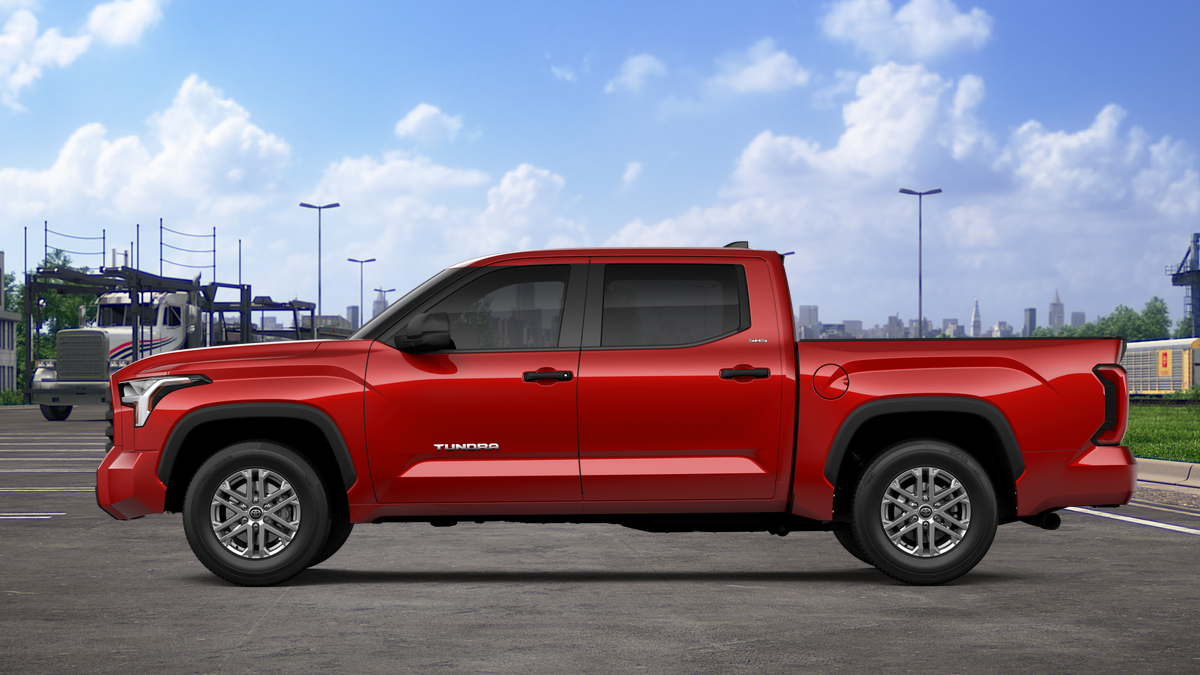

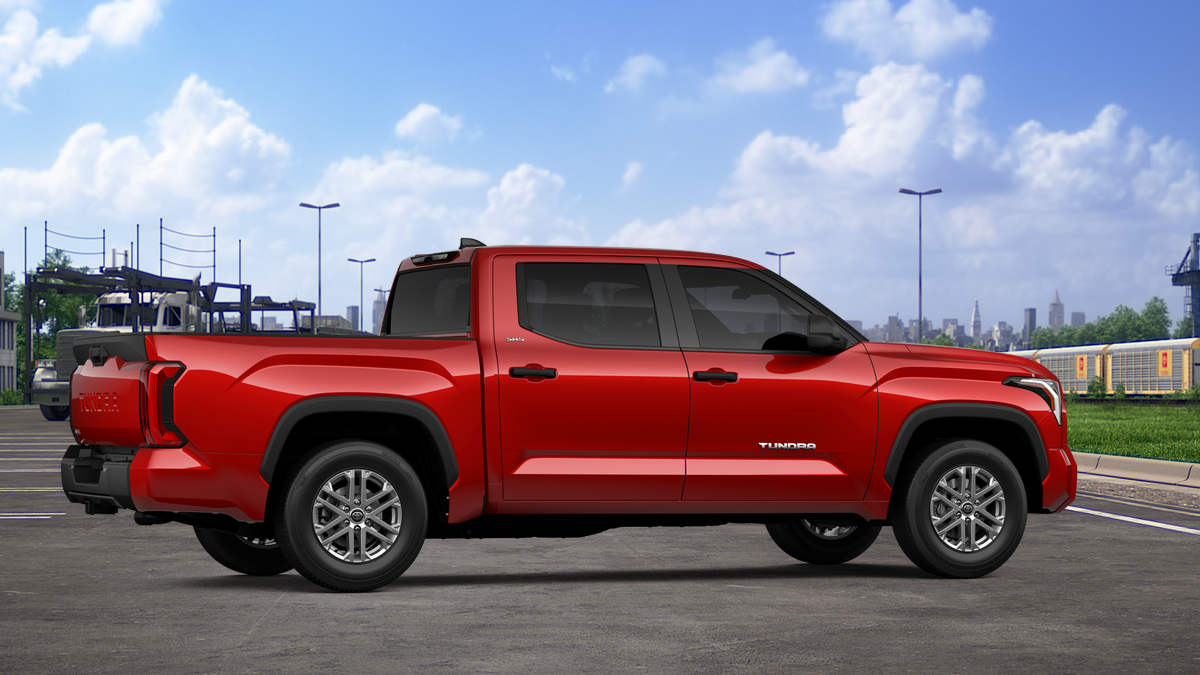

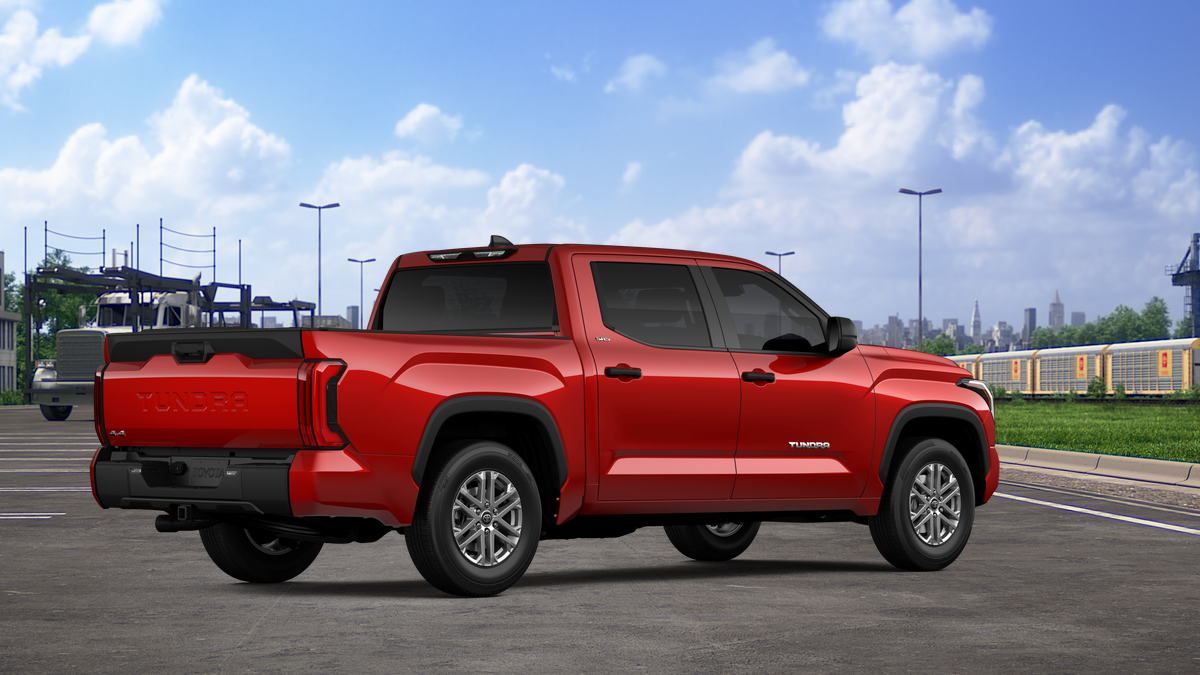

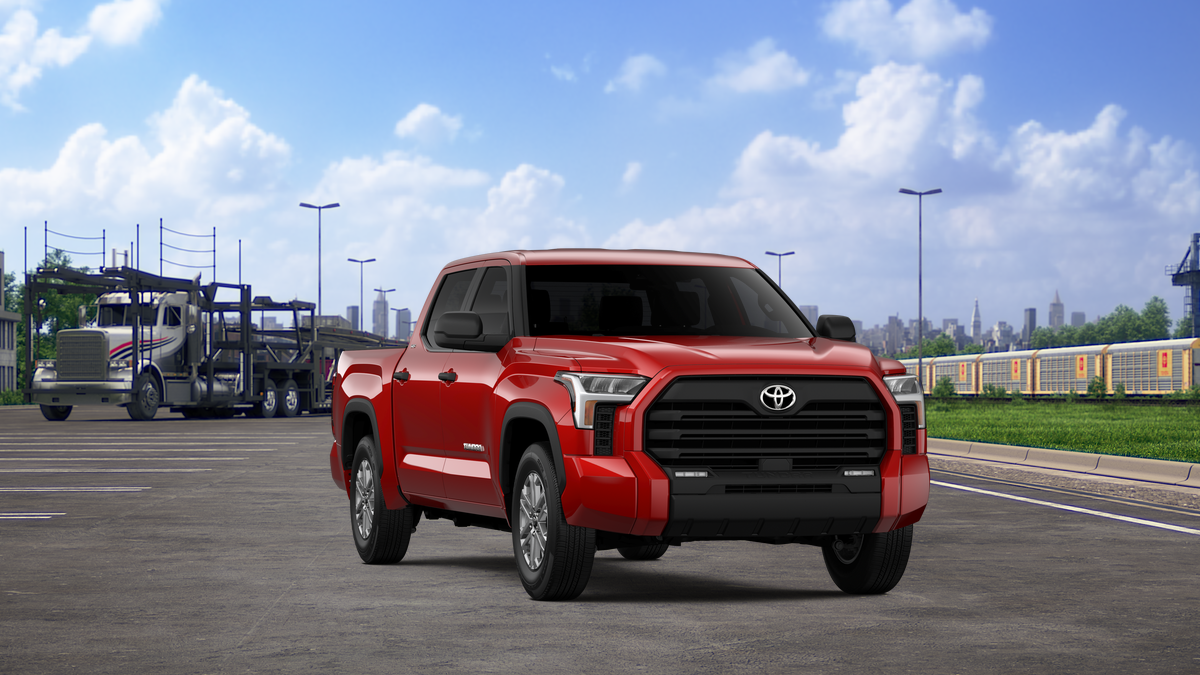

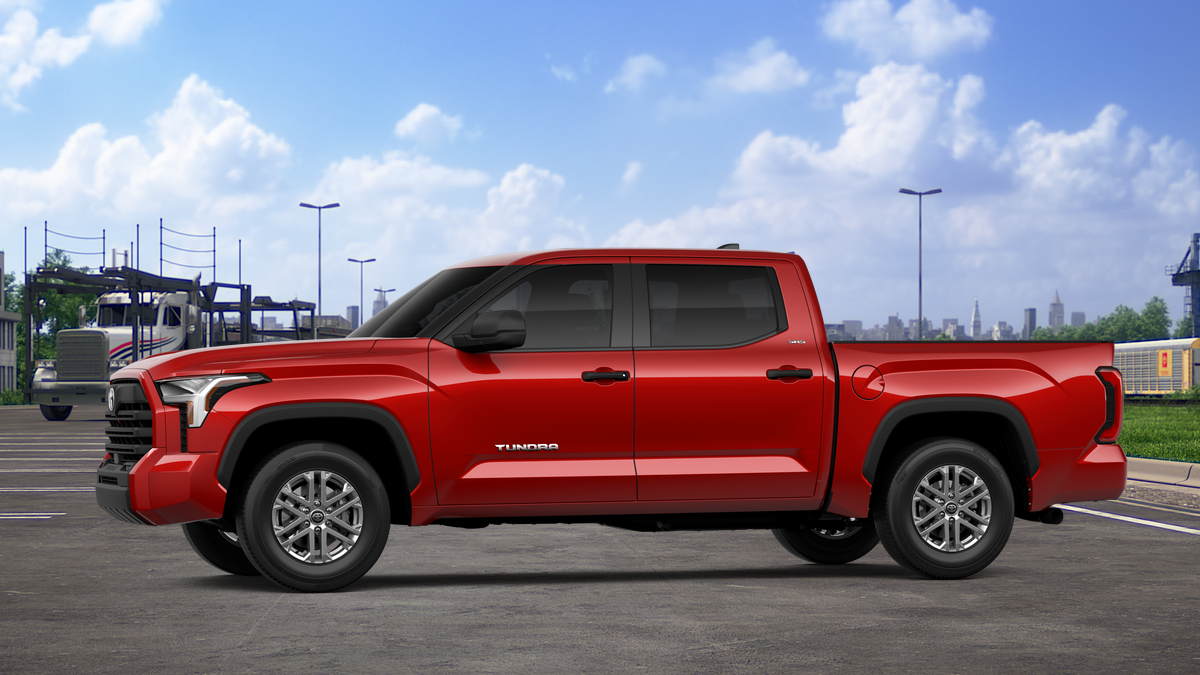

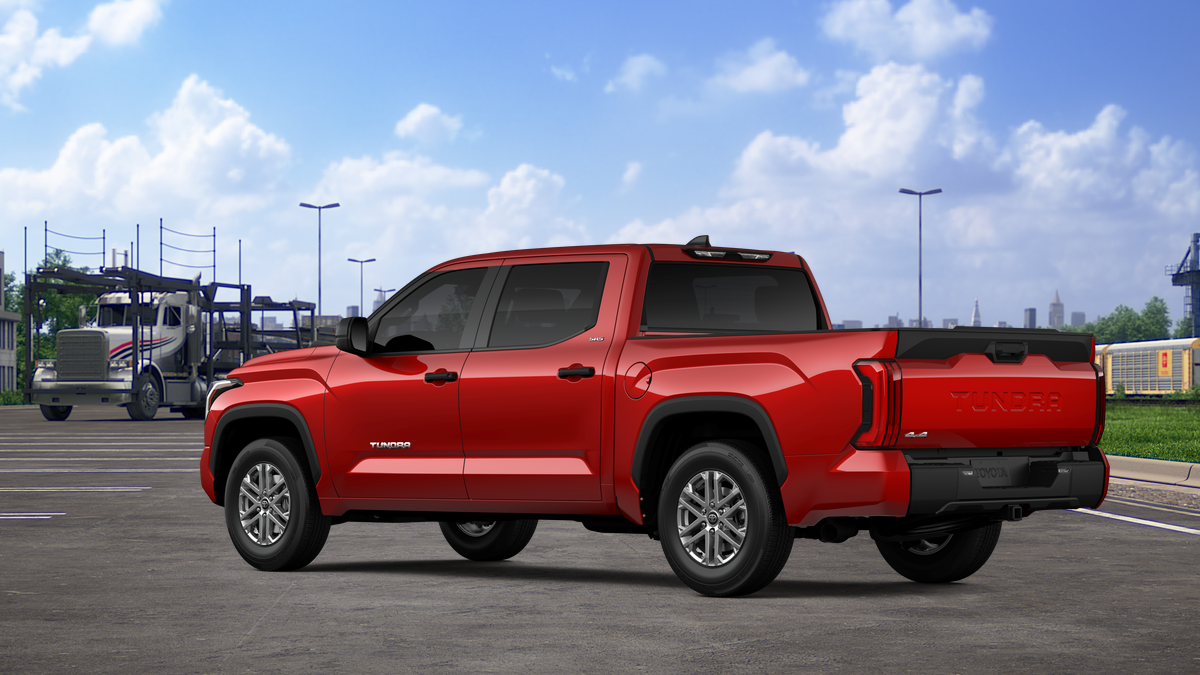

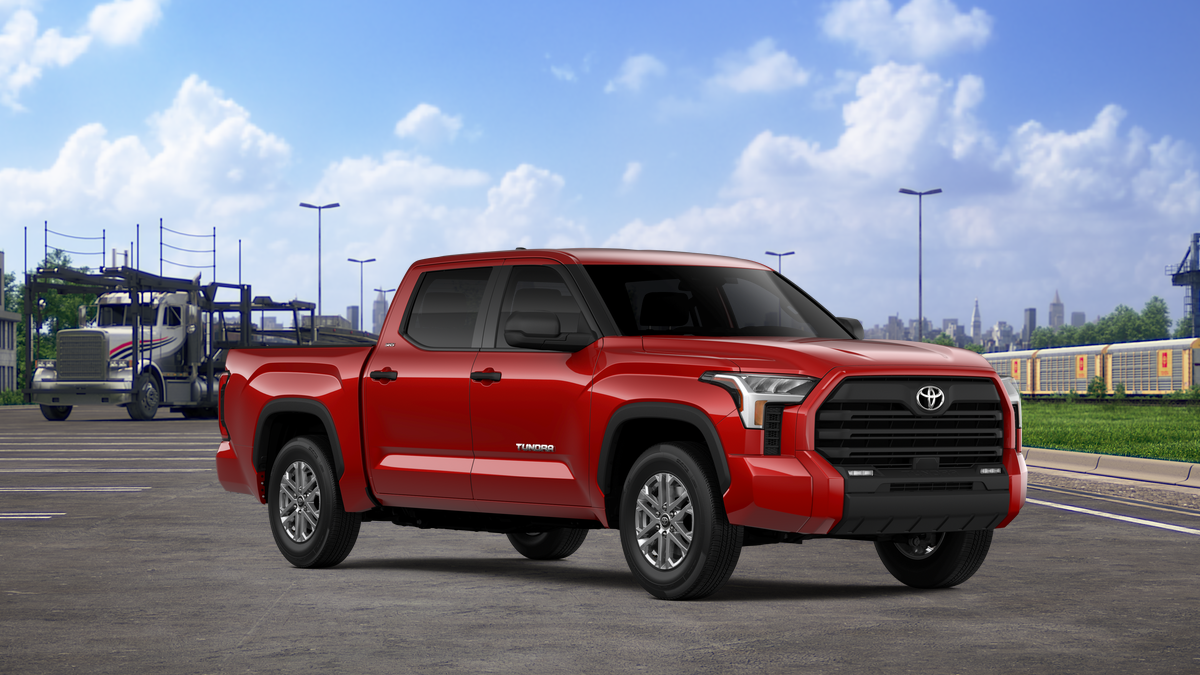

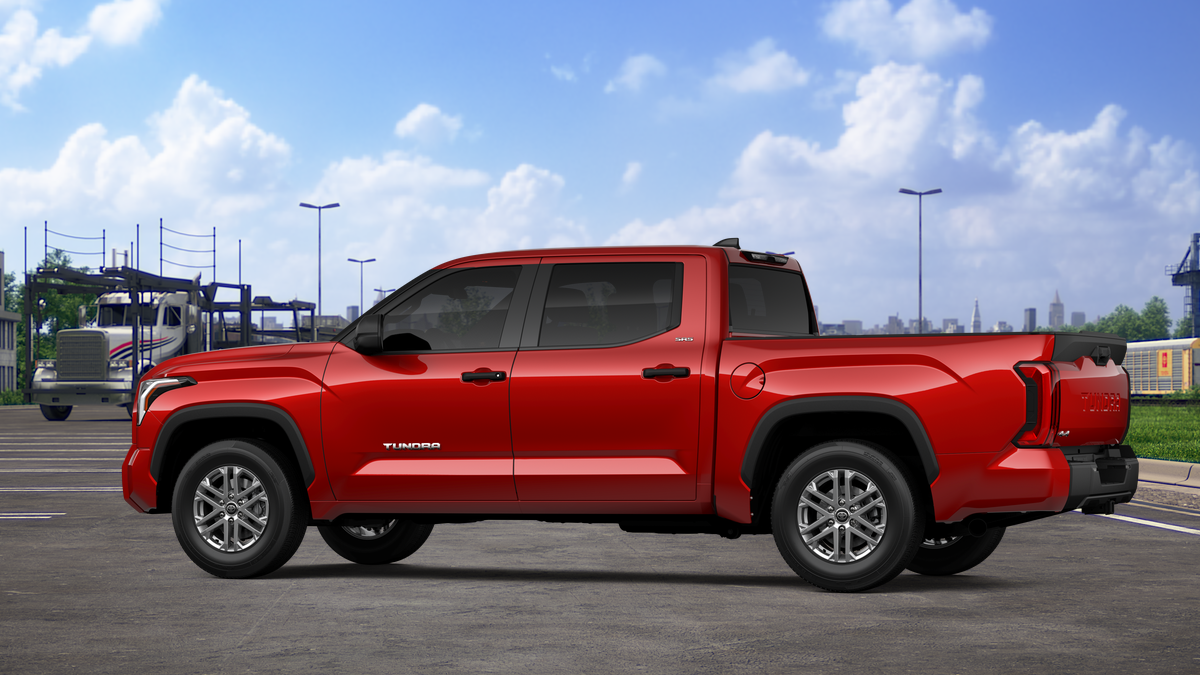

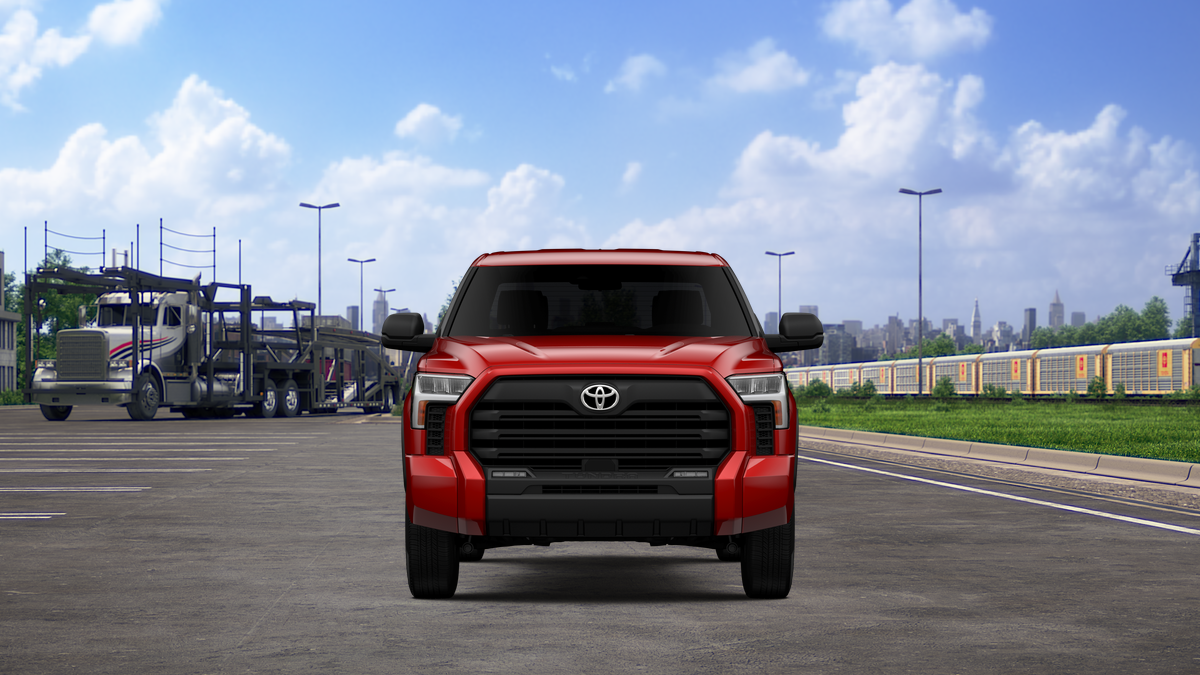

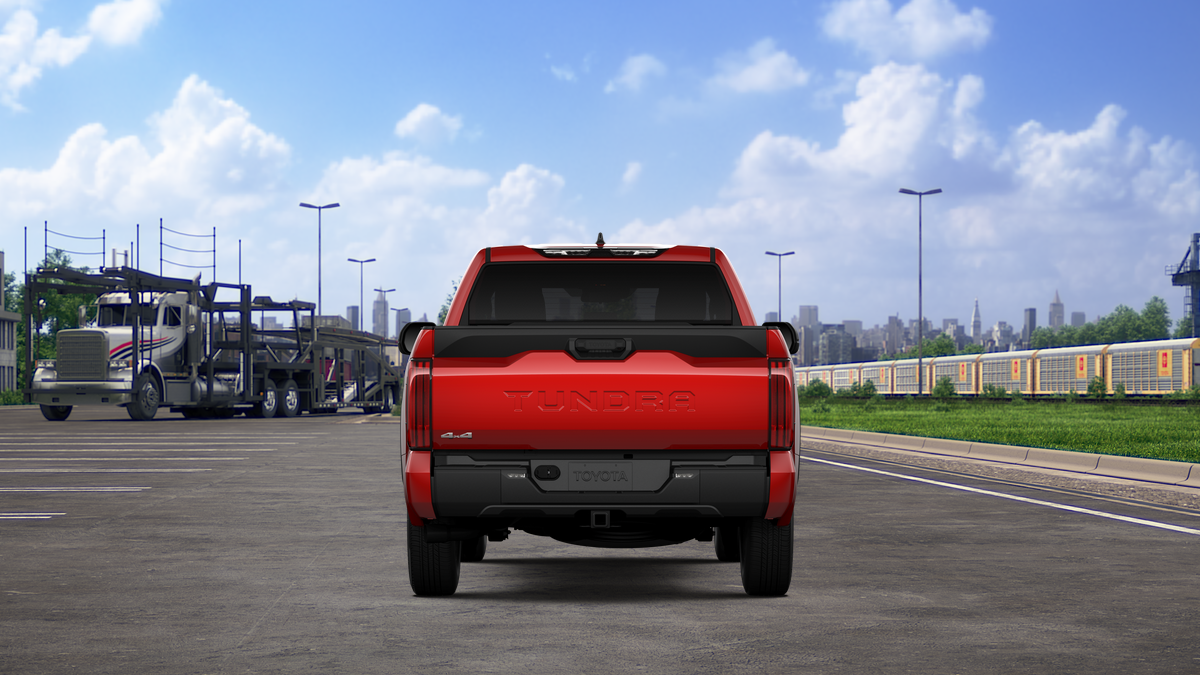

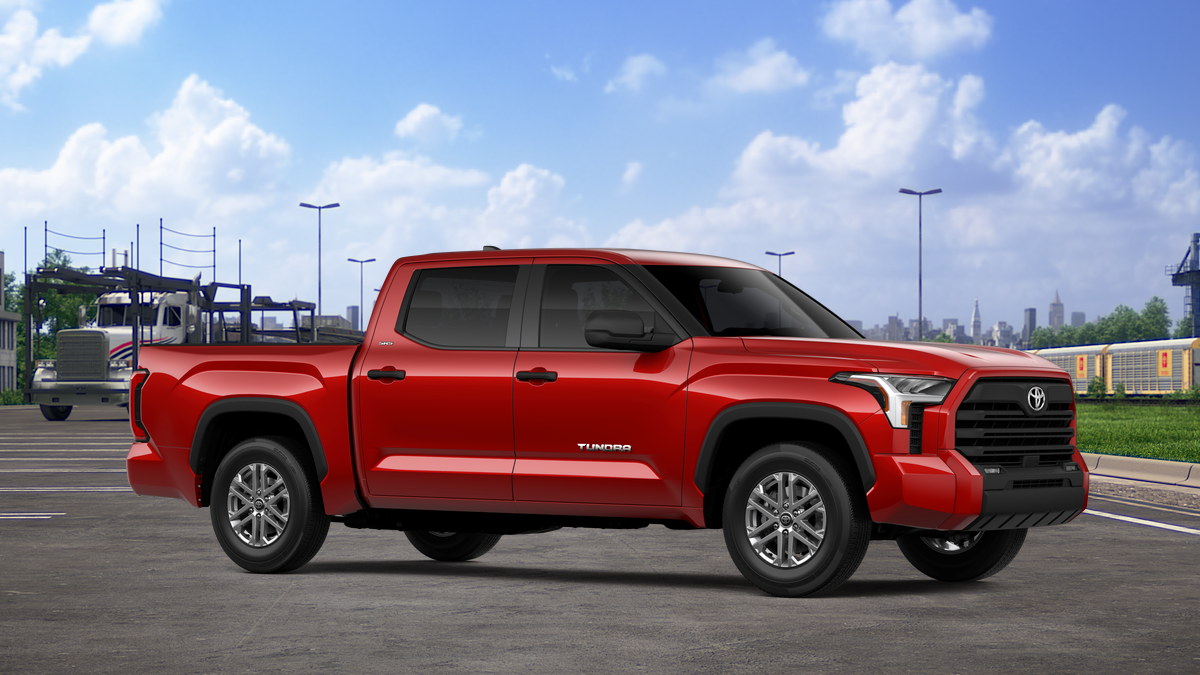

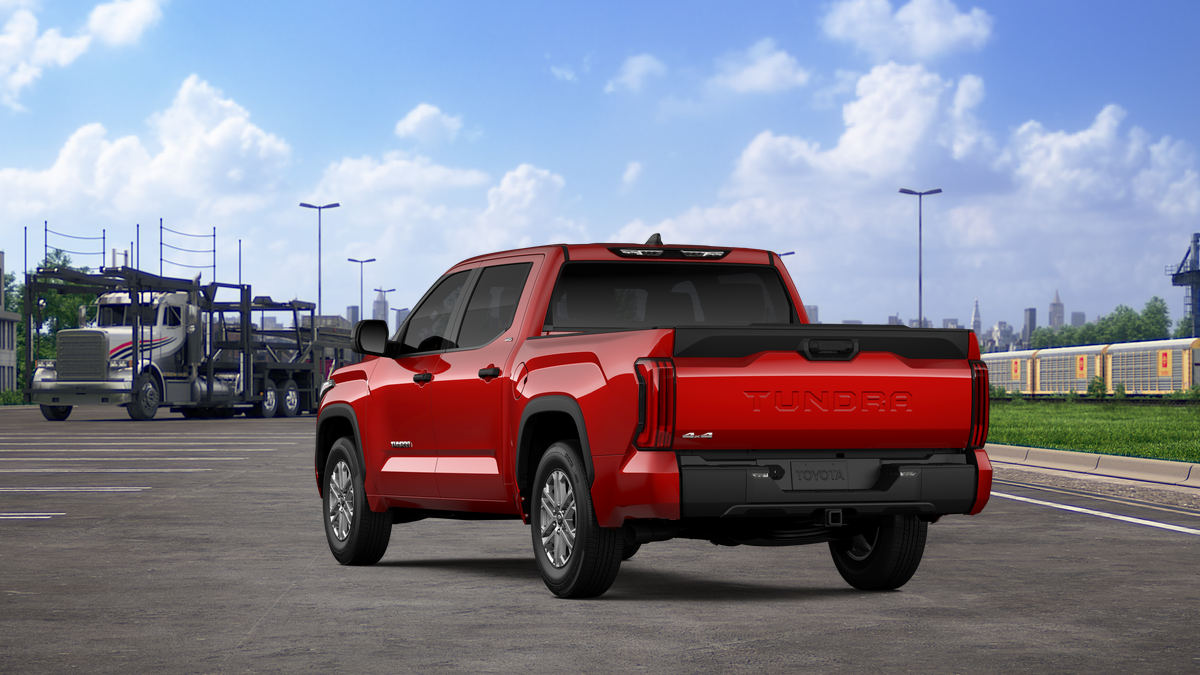

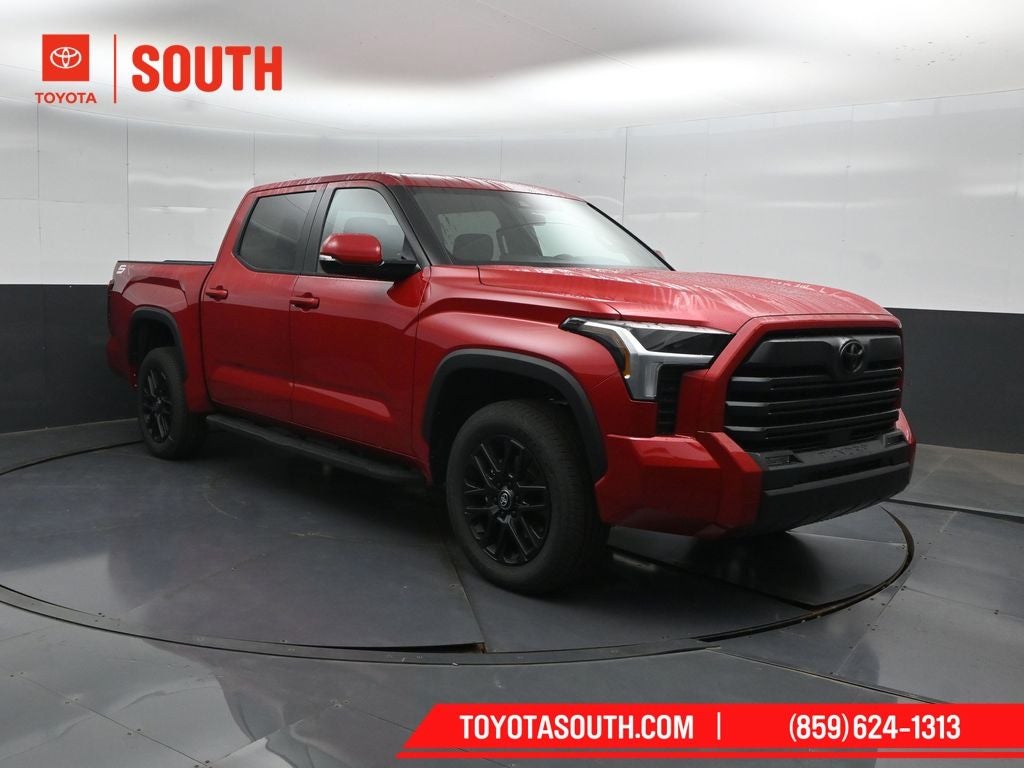

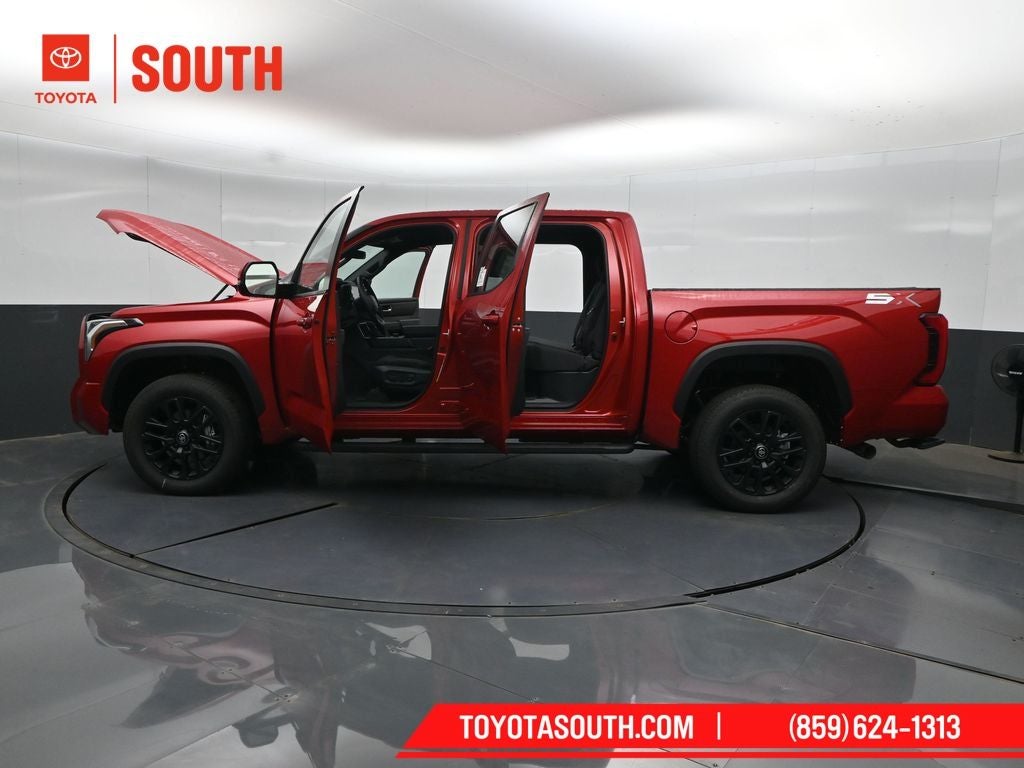

• Vehicle Name: Toyota Tundra 4WD
• Body Style: CrewMax
• Body Code: T
• Emissions
• EPA Greenhouse Gas Score: 4.0
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.2
